Rusty’s 2" Overland Advanced Kit with Rear Air Bags for the JT Gladiator was specifically developed to carry the increasing loads we are seeing people take on their overland trips. In the previous coil spring suspension kits using a coil in the rear we couldn't be happier with the performance but in the overland market, the increasing loads of 500 lbs. to well over 1000 lbs. even the triple rate coils just couldn't keep the load level. We spent well over a year working on different designs, and spring rates and to be able to have decent ride, great handling and carry these large loads, a coil spring just won't do the job right.
The answer was Rear Air Bags, these are Not an insert bag into your conventional coil springs, these are a completely air bag suspension, the coil spring is completely removed from the vehicle in the rear. This kit is also a bolt-on kit, requires to cutting or welding and someone with good knowledge of 4x4's, Jeeps and installing a suspension can easily install. Installation instructions are included that easily guide you each step of installing the Rusty's Overland Kit.
The Rusty's Overland Kit includes the proven Advance Kit standard products in the front, such as massive upper and lower control arms, front adjustable trac bar, sway bar links, upper and lower isolators as well as the massive rear control arms, sway bar links and trac bar. Once the kit is installed, just select the button on the hardwired TouchPad and get ready to load your gear into your vehicle for one of the best experiences possible.
The Rusty's Overland Kit comes with a 3 gallon seamless air tank and a quality air compressor protectively mounted under the vehicle to operate the rear air suspension but also can be used for any air needs.
Now that you are ready for your next adventure, Load your gear in the bed or hook the trailer or boat to the hitch and with a push of the button on the TouchPad, the vehicle will level front to rear and left to right to a preset sensor that provides accurate leveling regardless of load.
____________________________________________________________________________________________________________________________________________________________________________________________
Rusty’s JT Gladiator coils springs were developed specifically for the JT Gladiator so that you can be assured the ride height of the vehicle will be correct, with no cheesy offset spacers needed to keep the vehicle level or reduce spring bowing. The Rusty’s 4" kit will give you the clearance on a JT Gladiator to fully flex it with 37-inch tires off road and not have any fender rub, no inner fender rub. You can also easily run a 40-inch tire, but bump stops are recommended for vehicles going off road. Rusty's offer this for the gas and also for the diesel Gladiators too. Keeping specific model coils for gas and the diesel Gladiator ensures your vehicle will ride as good as it can and will also perform as good as it can.
The Gladiator 2 inch Advance comes complete with all 4 sets of Rusty's massive and beefy adjustable control arms. Offered in both Rusty's rebuild-able Flex Joints or Rusty's Rubber Flex Bushings.
Attention to detail with the Rusty's 2 inch Advance Kit is what separates this kit from the rest. Jeep had an issue when the JL Wrangler came out with the trac bar frame mount on the front cracking, Rusty's jumped right on this issue and designed and manufactured a frame brace so with the extra stress of the lifted vehicle and larger tires, it would eliminate the cracking while also reduce frame flex. All of Rusty's Gladiator kits come with this brace. The Rusty's Advance Kits also come with a front & rear brake line extentions, the rear also works as a double shear mount for the rear sway bar links. All of the Rusty's parts in this kit are proudly built in the USA. If you take the time to compare to any other kits in the industry, you will see why the Rusty's kit is more superior than others.

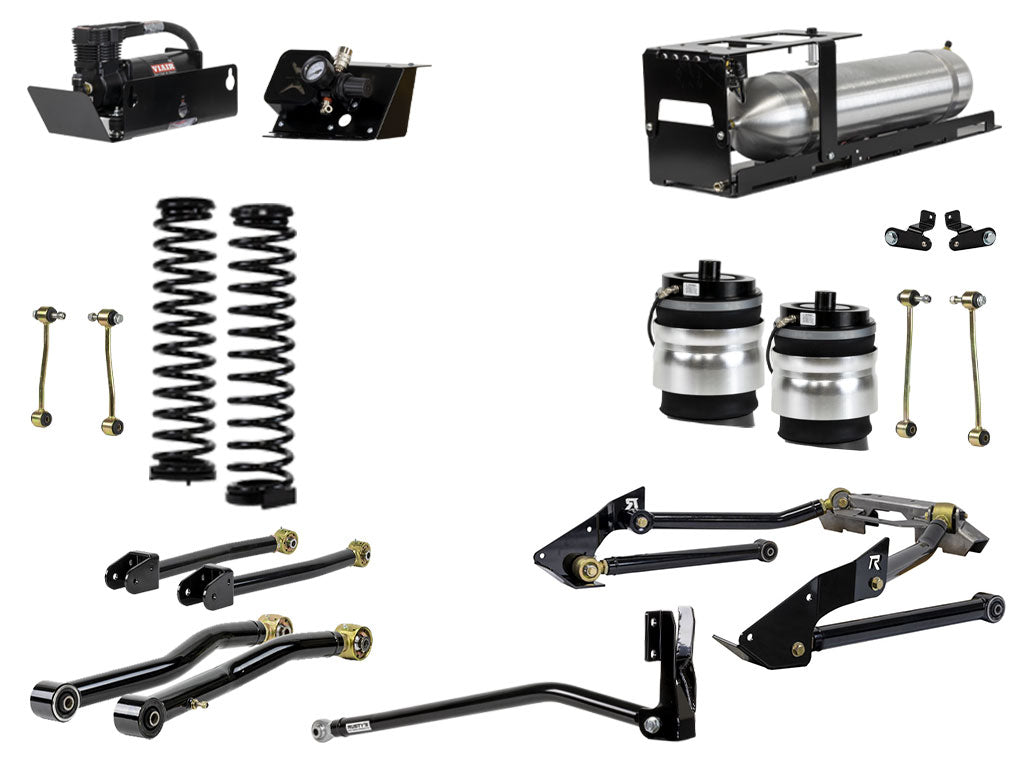

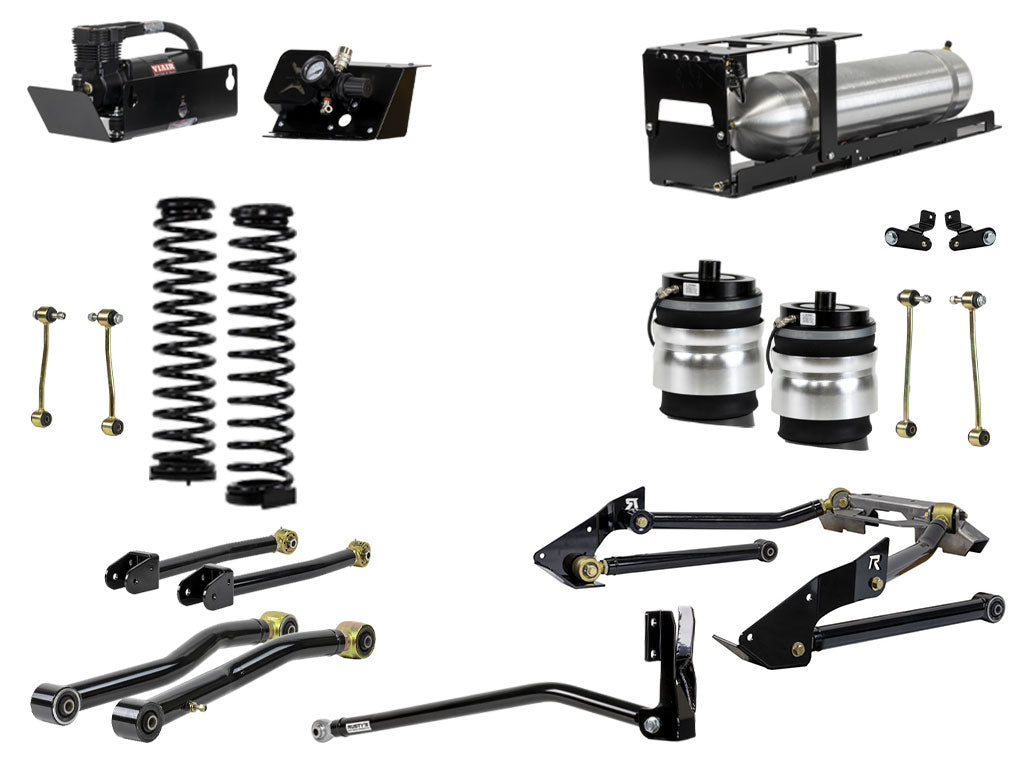

KIT INCLUDES:
- Front 2" JT Coil Springs
- Rear Air Bags (SKU: RC-AB200-JT)
- Adjustable Front Upper Control Arms with Forged Flex Ends
- Your choice of Adjustable Front Lower Control Arms with Forged Flex Ends or Forged Rubber Ends
- Rear Triangulated 4 Link System (SKU: R-FL2201-JT)
- Your choice of Adjustable Rear Lower Control Arms with Forged Flex Ends or Forged Rubber Ends
- Adjustable Front Track Bar (SKU: RC-TB480-JLJT)
- Front Track Bar Frame Mount Brace (SKU: RC-TB7500-JLJT)
- Front Extended Sway Bar Links (SKU: RC-SB480-JL)
- Rear Extended Sway Bar Links (SKU: RC-SB490-JL)
- Front Brake Line Extension Brackets (SKU: RB-BL30-JLJT)
- Front Upper and Lower Coil Spring Isolators (SKU: RC-9179 and RC-9182)
- Rear Brake Line Relocation / Sway Bar Double Shear Mount Kit (SKU: RC-SB5511-JT)
KEY FEATURES:
- Application-Specific Front Coil Springs
- Coils specifically developed from the JT, not borrowed from previous platform designs
- Maintains factory ride quality while making room for a larger tire and wheel package
- Adjustable upper and lower control arms with Forged Flex Joints front and rear for the ultimate in adjust-ability and flex, OR Forged Rubber Flex joints that offer world class flex but also offer no maintenance and a smooth ride.
- Extended front and rear sway bar links maintain factory sway bar functionality
- Available shock absorbers are tuned to work with spring rate
