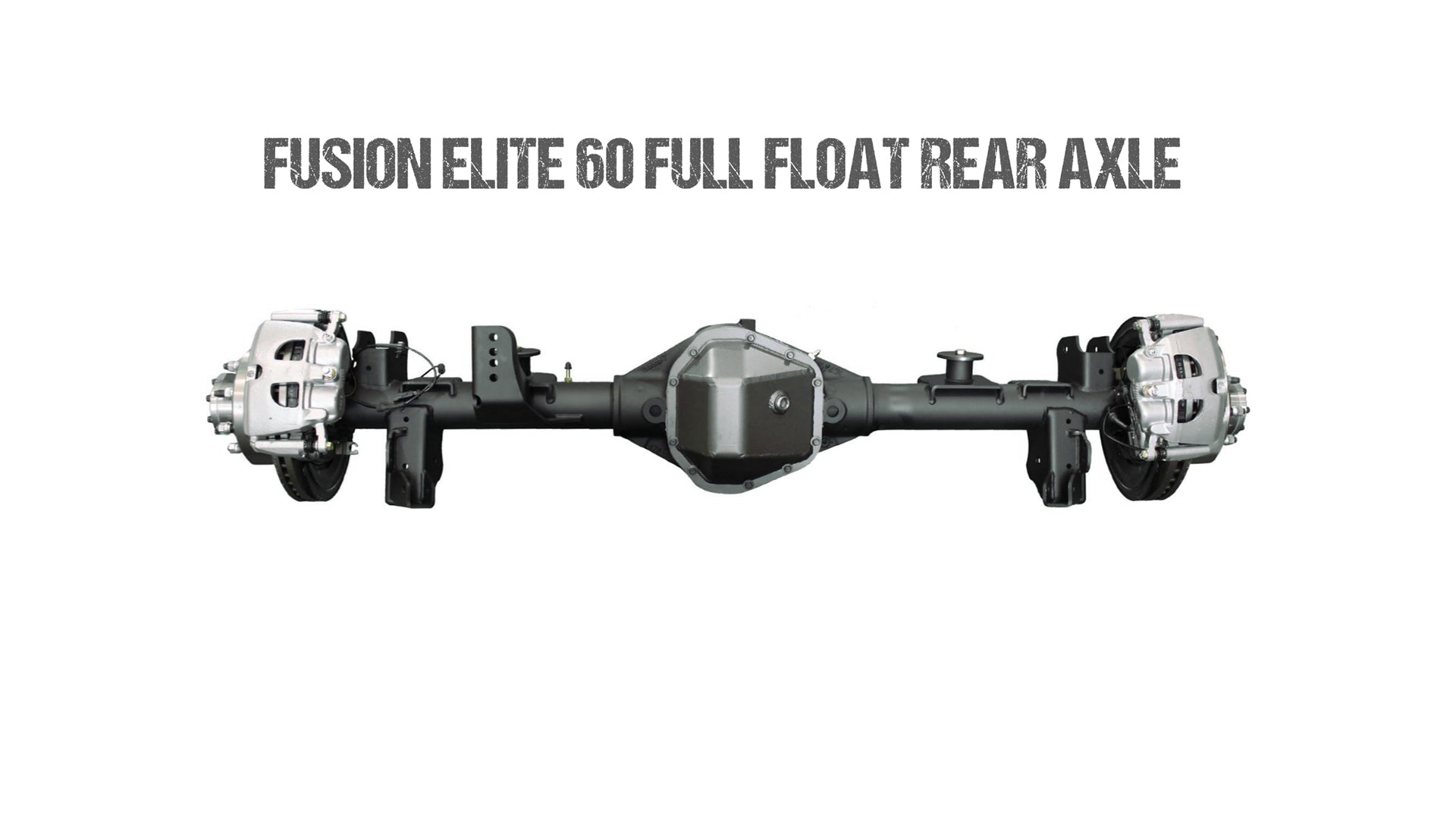

Fusion Elite 60 Full Float Rear Axle Assembly for Jeep TJ/LJ

fusion4x4
FUS-FF60-TJLJ
live
$6,495.00

Fusion Elite 60 Full Float Rear Axle Assembly for Jeep TJ/LJ

Part Number: FUS-FF60-TJLJ
Brand: Fusion

For current lead times on axles and shipping details:  See this page

Fusion axles come fully upgraded with the best components so customers don't need to navigate a lengthy list of expensive upgrades. Need Customization? No Problem! We can build axles with brackets kits for popular suspension systems such as EVO, Rock Krawler, and GenRight Elite.

Fusion Axle Design Principles
 1) Maximize performance of the axle; 2) individually maximize performance of the axle for every customer; and 3) lowest total cost of ownership.

  • Why Kingpin? Regardless of price or size of the axle, every ball joint wears out, and often faster on 1-ton axles due to tire size, hydro assist, and off-road use. The Fusion springless kingpin design will never wear out and incorporates a preload adjuster should a customer ever need to tighten the steering. You will never need to replace parts and they will always feel like new.
  • Lowest total cost of ownership. At Fusion we truly believe that once a customer buys an axle they should not have to spend more money on them in the future. Kingpin means no ball joints to wear out and replace. Lifetime Warranty axle shafts means that in the rare chance you have an axle shaft failure, send us a picture and we will send a replacement. Included 2.5 Ton Steering provides a lifetime warranty against bending or breaking, which means you not only have the strongest steering in the industry, but also that you won't have to spend more money on steering again.
  • Next generation rear 40 spline assembly. 18 months of design, engineering and testing, resulted in the industry's strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
    - Forged chromoly spindles, hubs, and axle shafts
    - Forged spindles have 4x more yield strength than 35 spline spindles
    - Hubs with over 80,000 psi yield strength to match the spindles
    - Tone rings integrated into the hub
    - Forged 4340 chromoly 40 spline axle shafts that are over 55% percent stronger than 4340 35 spline axle shafts
    - Designed for the most extreme applications in off-road, racing, and commercial applications

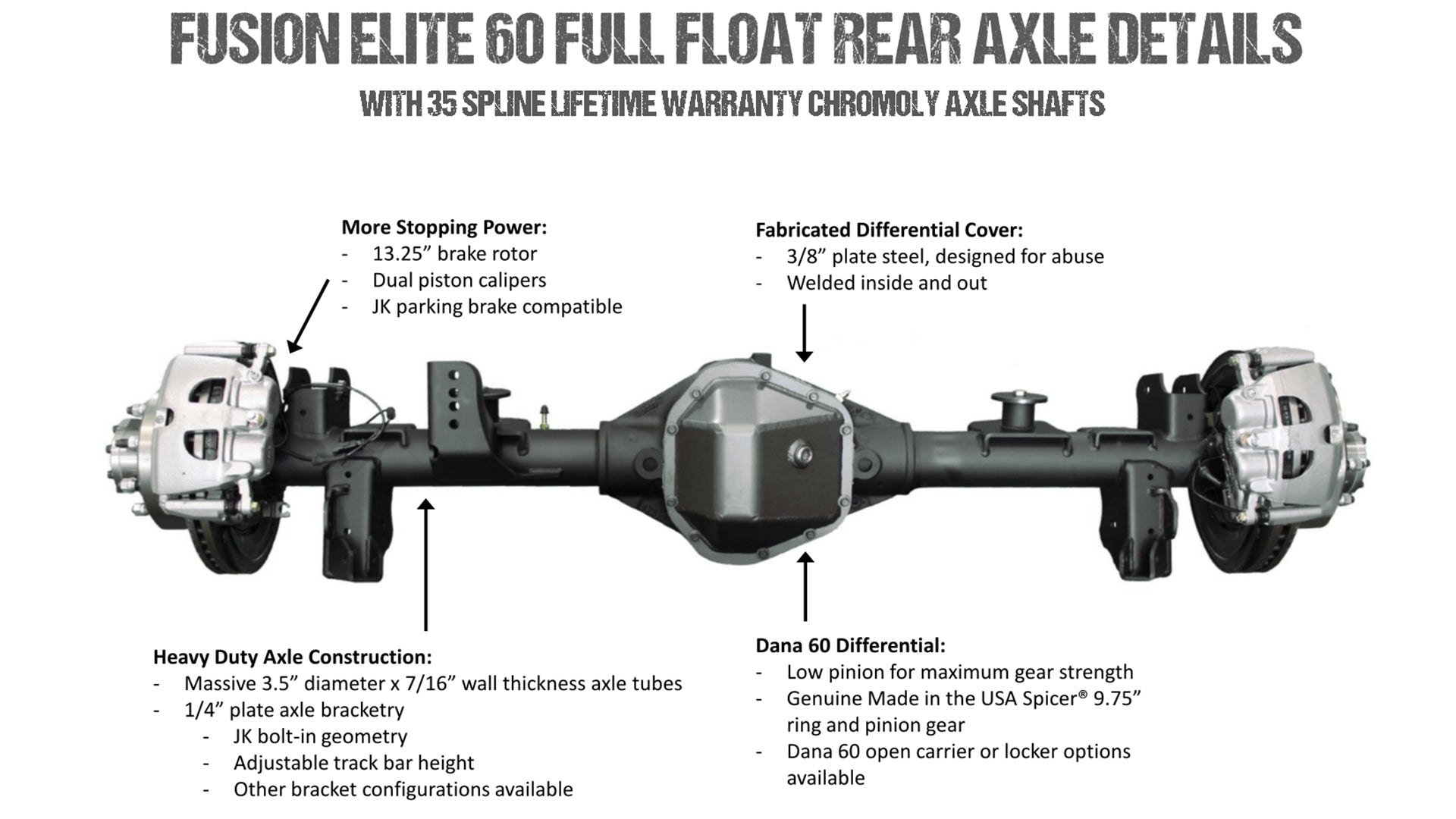

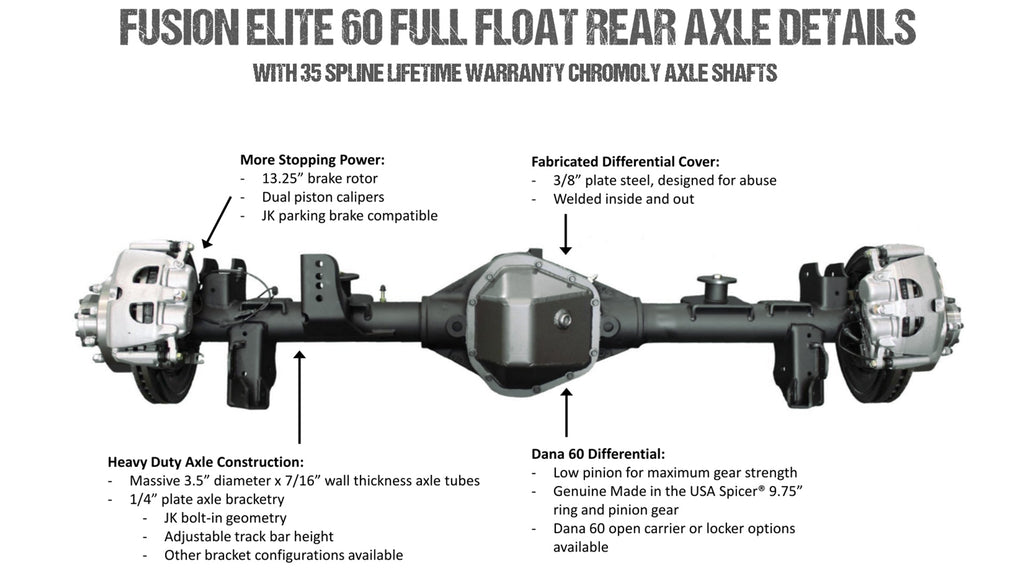

Fusion Elite 60 Full Float Rear Axle Assembly Standard Features:

  • Low pinion design for maximum gear strength
  • Genuine Made in the USA Spicer® 9.75" Ring & Pinion
  • 3.5" diameter x 7/16" wall axle tubes
  • Lifetime Warranty US Made 35 Spline dual heat treated Chromoly axle shafts
  • 1/4" plate axle bracketry designed to be the strongest in its class
  • 3/8" plate fabricated diff cover welded inside and out provides maximum protection to the internal parts
  • 8 x 6.5 bolt pattern
  • Big brake kit with dual piston calipers and 13.25" rotors

Custom widths available, please call for details.
