Part Number: FUS-E44SF60-JL
Brand: Fusion
For current axle lead times and shipping details: See this page

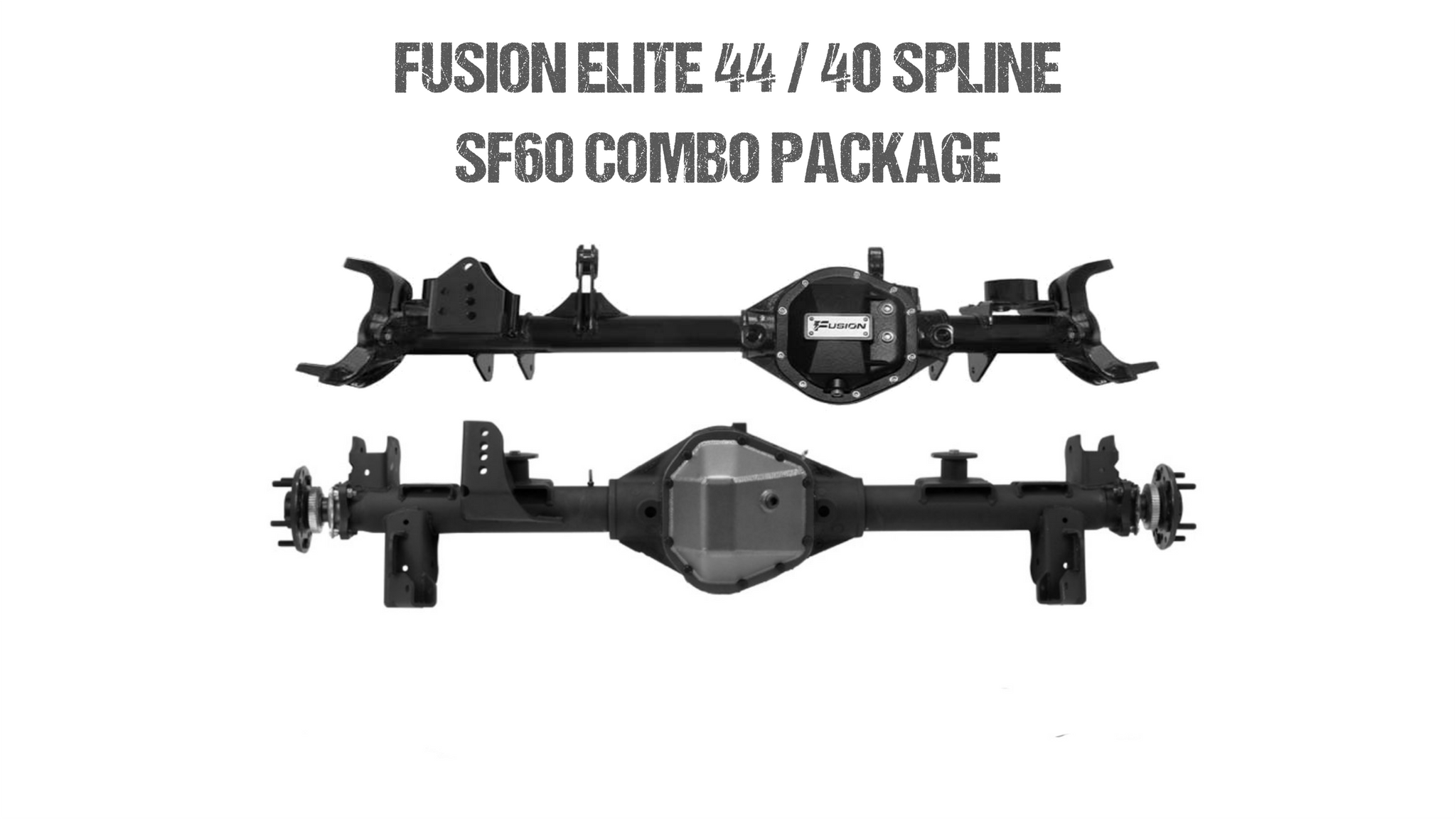

Fusion 44 Front Axle
- High strength 44 center casting with no loss of ground clearance vs. the OE casting
- Fusion Heavy Duty Nodular Iron Differential Cover
- Large 3.0" diameter DOM axle tubes with 1/2" wall thickness
- Massive heavy duty forged JL inner knuckle Cs
- Available in 66.5" or 68" width
- Heavy duty 1/4" laser cut and CNC bent brackets
- Designed and manufactured in the USA
- Increased Caster for a total of 10 degrees of separation compared to 6 degrees on a stock axle (e.g. 5 degrees of caster and 5 degree positive pinion angle) - custom adjustment available
- Accepts the factory knuckles or after market high steer knuckles
- 4340 Chromoly Axle shafts with Spicer Solid 1350 U-Joints
- Optional RCV Axle Shafts
- Optional Ball Joints
- Choice of Gear Ratio and Locker Type
- Commercial paint coating
- Shipped Fully Assembled and Ready for Factory Outer Components
The Fusion Elite 44 front axle offers the same ground clearance of a factory Jeep JL Dana 44, while providing significantly more strength than the OE housing.
Warranty
- 5 year structural housing warranty
- Lifetime axle shaft warranty
- 5 year parts warranty on gears and lockers
Fusion 40 Spline Semi-Float 60 Rear Axle for 2018 and newer Jeep Wrangler JL.
Introducing the latest addition to our line of industry leading Jeep Wrangler JL axle assemblies, the Fusion Semi-Float 60 rear axle! The axle uses the same Low Pinion Elite 60 Housing that we use on our Elite Full Float 60. The same casting and 3.5" x 7/16" axle tubes. Go big, or don't get home.
New for the JL: Standard 40 spline Forged Chromoly Axle Shafts and the larger SET80 bearings found on the JL Rubicon. Designed for up to 39" tires. Available in two standard widths and also custom width.
Specifications:
- Fusion Elite 60 Housing with HD Nodular Iron Diff Cover
- HD JL Brackets, Laser Cut from 1/4" Plate Steel and CNC bent and fully welded
- Massive 3.5" diameter tubes with 7/16" wall thickness
- Fusion 40 Spline 4130 heat treated chromoly axle shafts with a lifetime warranty against breakage
- 5x5 JL Bolt Pattern
- Forged U-bolt style yoke with U-bolt kit
- Utilizes Dana 60 lockers/carrier and gear set
- Commercial Paint Application. Learn more here: https://fusion4x4.com/blogs/news/another-reason-fusion-is-the-best-new-paint
- Designed and manufactured in the USA
