Part Number: FUS-E44RGP-JK
Brand: Fusion
For current axle lead times and shipping details: See this page

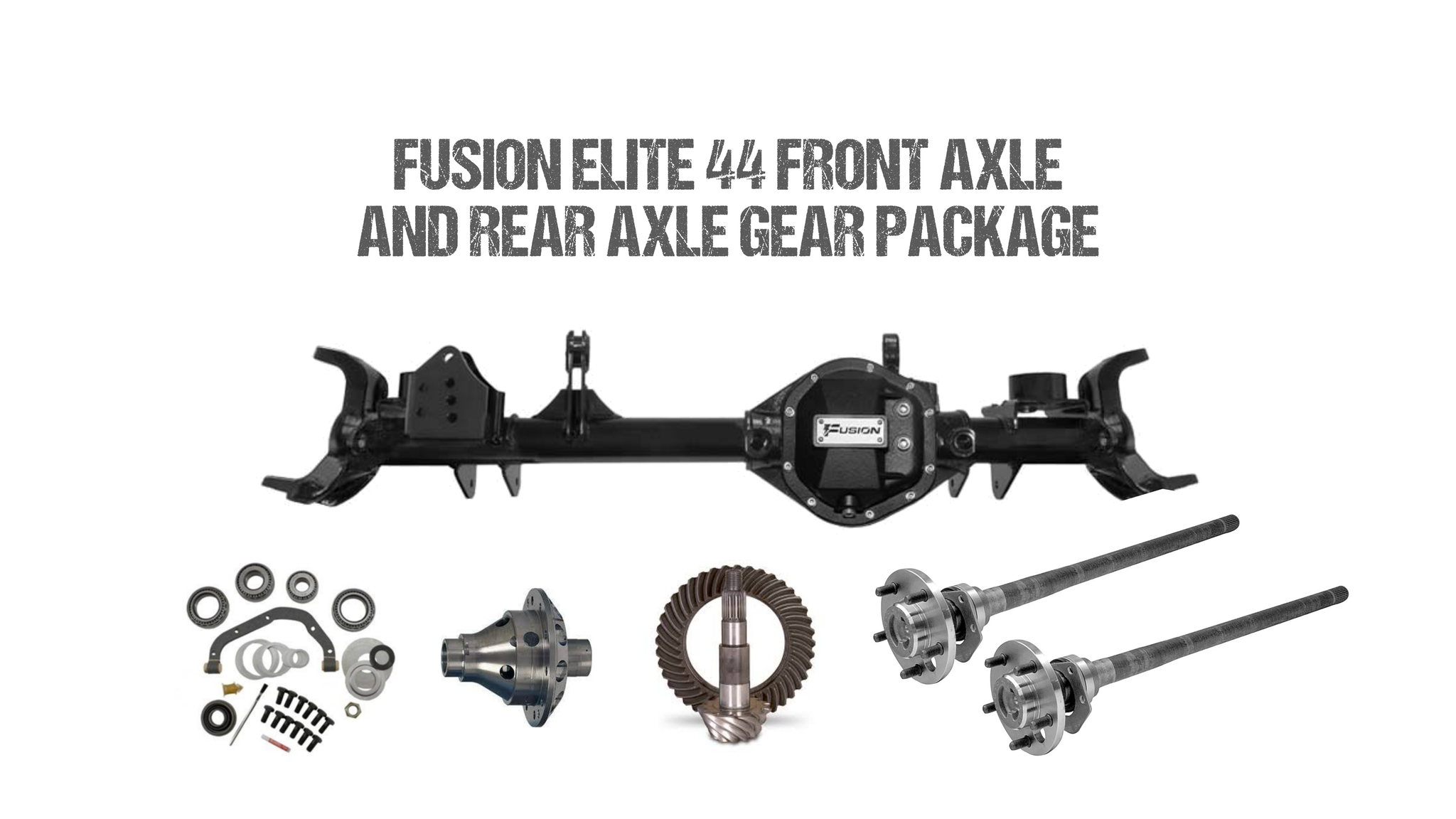

Fusion 44 Front Axle
- High strength 44 center casting with no loss of ground clearance vs. the OE casting
- Fusion Heavy Duty Nodular iron Differential Cover
- Large 3.0" diameter DOM axle tubes with 1/2" wall thickness
- Massive heavy duty forged JK inner knuckle Cs
- 65.5" Width (same as stock)
- Heavy duty 1/4" laser cut and CNC bent brackets
- Designed and manufactured in the USA
- Increased Caster for a total of 10 degrees of separation compared to 6 degrees on a stock axle (e.g. 5 degrees of caster and 5 degree positive pinion angle) - custom adjustment available
- Accepts the factory knuckles or after market high steer knuckles
- 4340 Chromoly Axle shafts with Larger Rubicon U-Joints
- Optional RCV Axle Shafts
- Dana Spicer Ball Joints (other options available)
- Choice of Gear Ratio and Locker Type
- Commercial paint coating
- Shipped Fully Assembled and Ready for Factory Outer Components
The Fusion Elite 44 front axle offers the same ground clearance of a factory Jeep JK Dana 44, while providing significantly more strength than the OE housing.
Warranty
- 5 year structural housing warranty
- Lifetime axle shaft warranty
- 5 year parts warranty on gears and lockers
