Part Number: FUS-SF60-JL
Brand: Fusion
For current axle lead times and shipping details: See this page

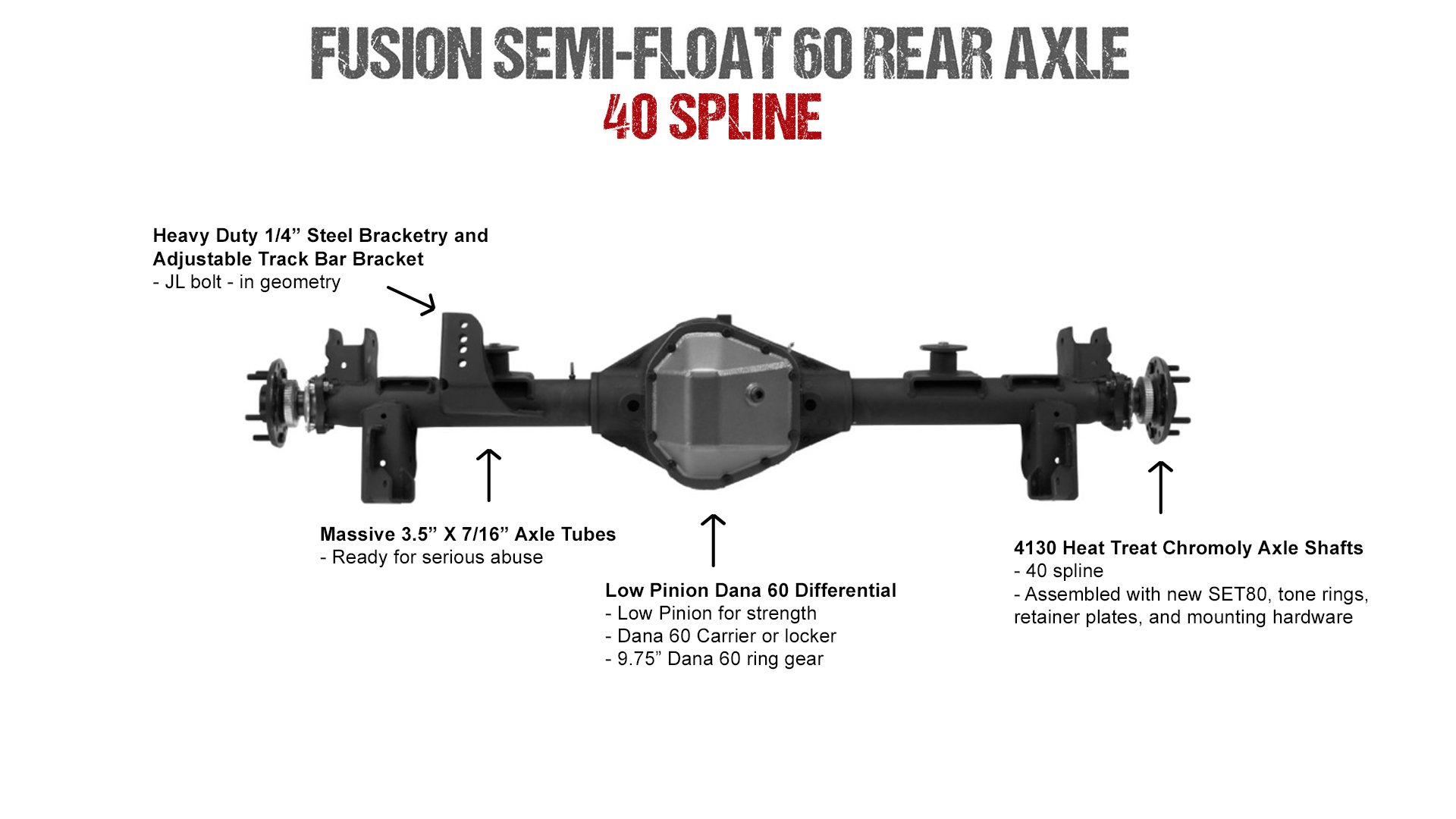

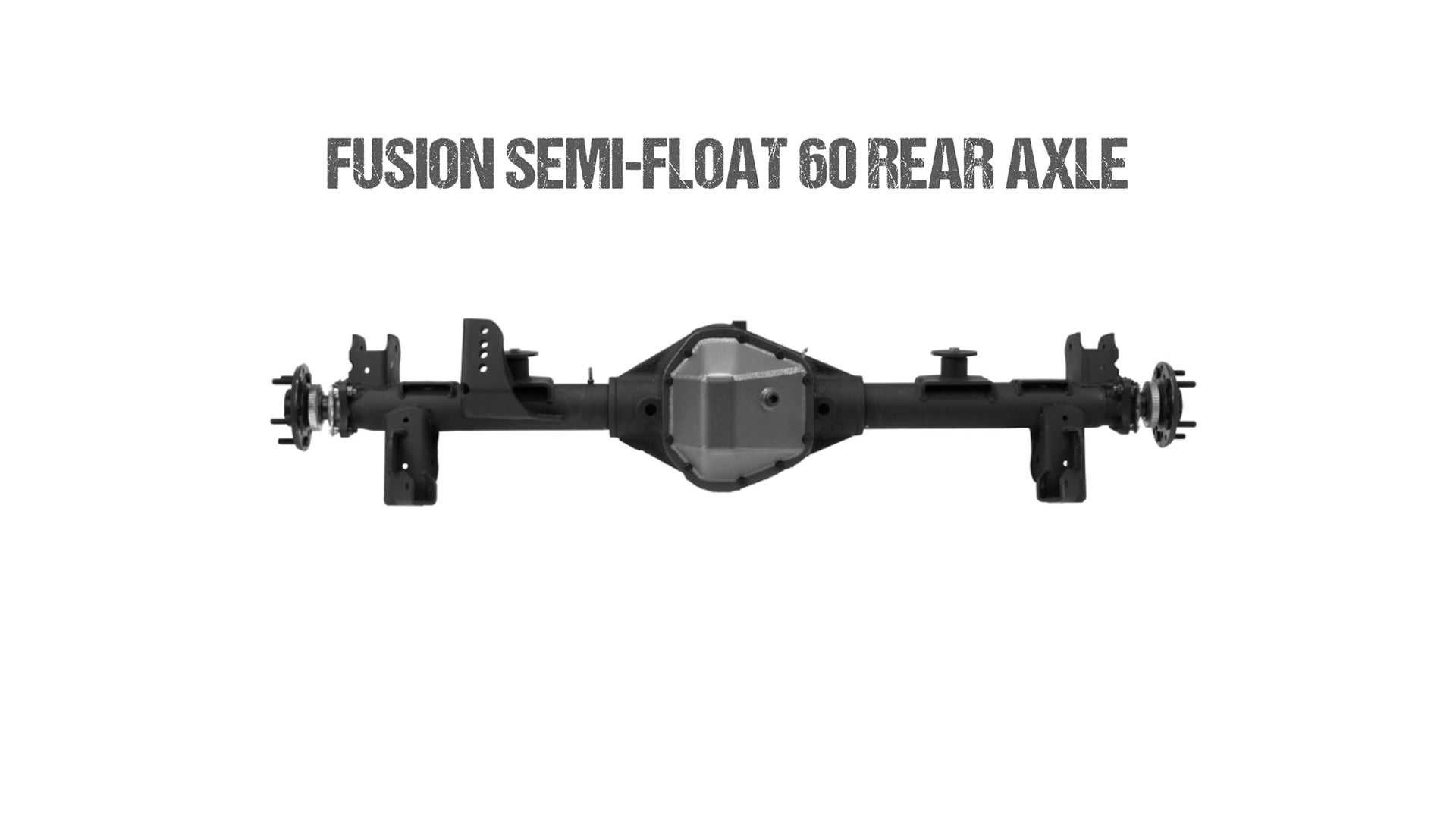

Fusion 40 Spline Semi-Float 60 Rear Axle for 2018 and newer Jeep Wrangler JL. Introducing the latest addition to our line of industry leading Jeep Wrangler JL axle assemblies, the Fusion Semi-Float 60 rear axle! The axle uses the same Low Pinion Elite 60 Housing that we use on our Elite Full Float 60. The same casting and 3.5" x 7/16" axle tubes. Go big, or don't get home.
New for the JL: Standard 40 spline Forged Chromoly Axle Shafts and the larger SET80 bearings found on the JL Rubicon. Designed for up to 39" tires. Available in two standard widths and also custom width.
Specifications:
- Fusion Elite 60 Housing with HD Nodular Iron Diff Cover
- HD JL Brackets, Laser Cut from 1/4" Plate Steel and CNC bent and fully welded
- Massive 3.5" diameter tubes with 7/16" wall thickness
- Fusion 40 Spline 4130 heat treated chromoly axle shafts with a lifetime warranty against breakage
- 5x5 JL Bolt Pattern
- Forged U-bolt style yoke with U-bolt kit
- Utilizes Dana 60 lockers/carrier and gear set
- Commercial Paint Application. Learn more here: https://fusion4x4.com/blogs/news/another-reason-fusion-is-the-best-new-paint
- Designed and manufactured in the USA
