Currectlync Jeep JL/JT High Steer Kit For Ram Assist And Non-Rubicon Axle. Incl. Knuckles Drag Link Tie Rod Trac Bar Reloc/Ram Mount Axle Bracket Ram Assist Tie Rod Clamp RockJock 4x4 - RockJock 4x4 - RJ-440000-103

Q: WHY RockJock High Steer Knuckle Kits? A: Here's a whole list of reasons!

More than just a pair of knuckles, THE ONLY High Steer Kits on the market that are COMPLETE!

These are bolt-on kits designed specifically for the JL/JT/JK vehicle platforms, engineered to optimize performance and available with both steering damper and ram assist options
This is not a flip kit! Kits feature new knuckle castings with elevated steering arms - making them the highest High Steer solution available on the market!
Cast, 65-45-12 ductile iron knuckles replace the unreliable stock aluminum knuckles

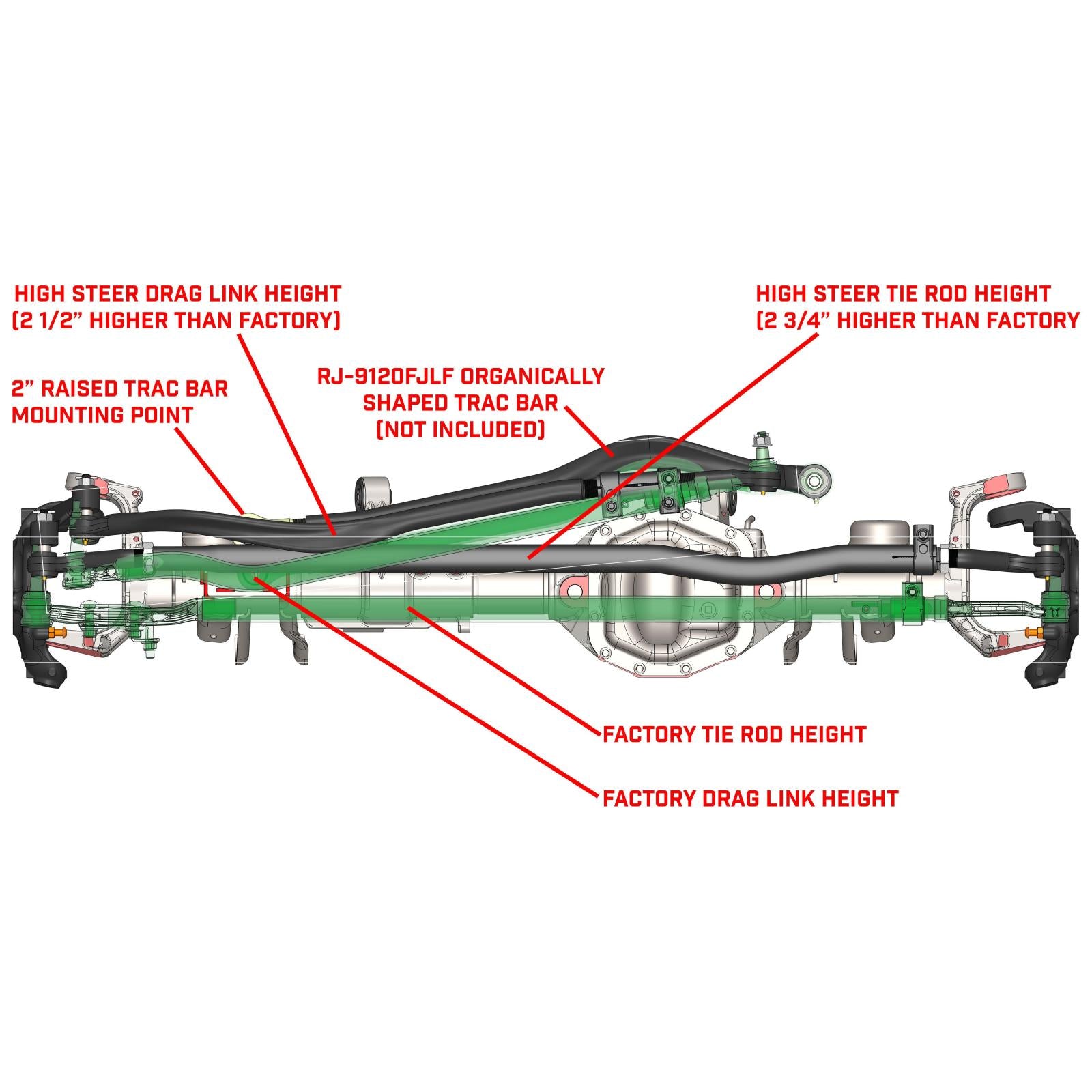

Raises drag link and trac bar axle mounting points 2.50 in., correcting front end geometry to enhance stability, reduce body roll, and prevent bump steer

Preserves correct Ackermann geometry for safe and reliable on-road handling across all speeds and conditions, including highway driving, towing, and heavy loads

Lifts the tie rod by 2.75 in., elevating it above the rocks and enhancing ground clearance for all steering components
While most flip kits require a minimum of 3.0 in. of bump stop, the RockJock High Steer incorporates a dip in both the drag link and tie rod to optimize up travel potential, requiring only 2.2 in. (gas), 1.1 in. (diesel) and .188 in. (392) of bump stop!
CAD-based packaging using our forged, organically shaped trac bar and drag link prevents components from making premature contact with the frame, enabling greater upward travel than stock, even with lifts as low as 3 in.

A picture is worth a thousand words, as they say! Please review this item's photo gallery!

For more detailed information on THIS RockJock High Steer Kit, read on…..

Kit Fits:

Fits all listed vehicles below, granted they retain the factory, narrow width (Sport/Sahara) front differential, or any narrow width aftermarket differential that features factory spec. inner C-knuckles.

• JL Wrangler Unlimited (4-door) - Sport/Sahara Models (upgrading to ram assist)
• JL Wrangler (2-door) - Sport/Sahara Models (upgrading to ram assist)
• JT Gladiator - Sport Models (upgrading to ram assist)

RJ-440000-103 Kit

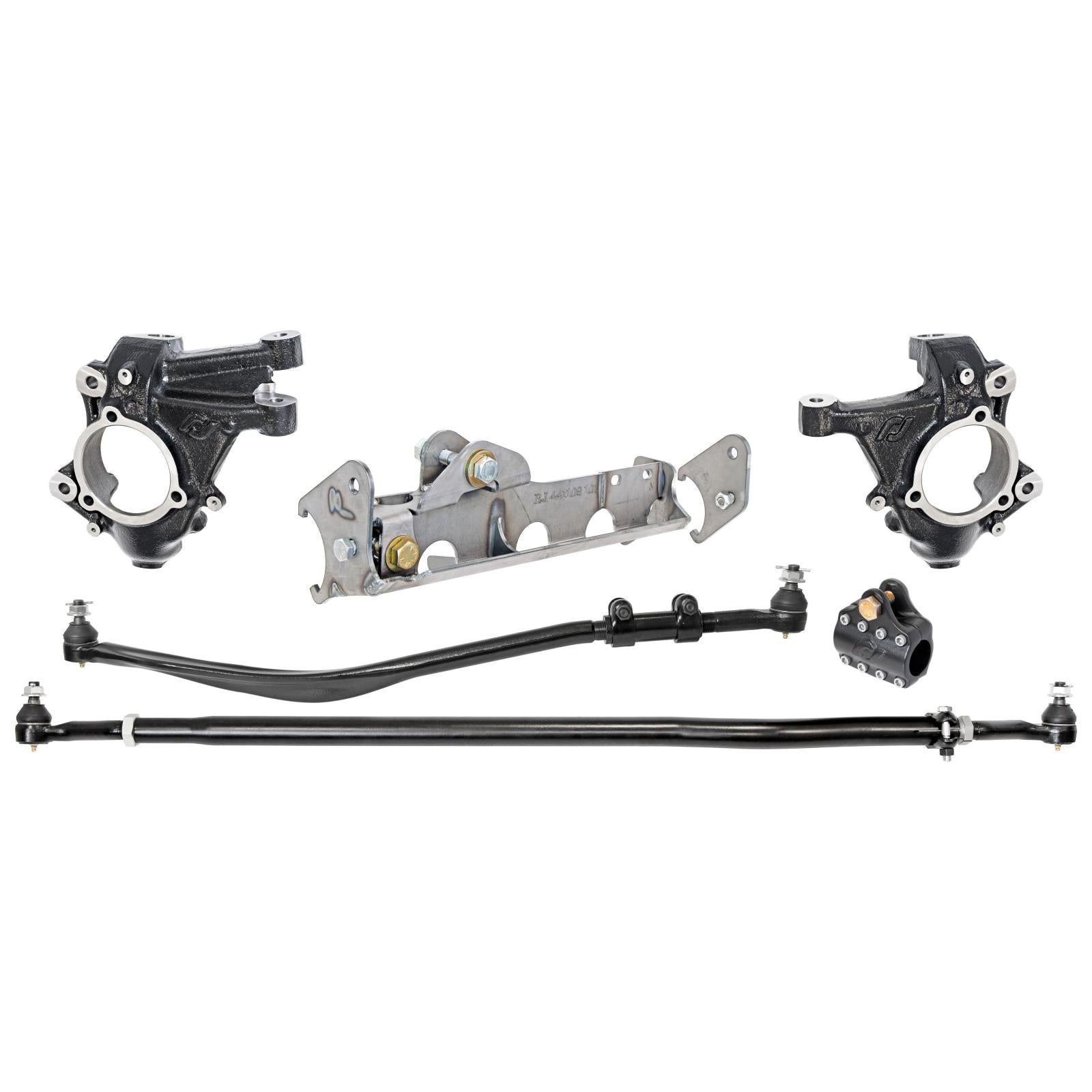

Kit is complete with EVERYTHING needed to do the job
Designed for use on the narrow width factory JL/JT axles (found in Sports, Saharas, etc.)
Can be used on aftermarket axle housings with factory JL/JT inner Cs
Kit includes pair of knuckles, bolt-on Currectlync Steering System, trac bar relocation bracket with hydraulic ram-assist steering ram mounting provision, plus a corresponding forged chromoly tie-rod clamp

Kit is recommended for use with RockJock's RJ-9120FJLF forged chromoly organically shaped front trac bar and RJ-107101-101 adjustable front bump stop kit to ensure all components nest together for maximum up-travel, as engineered
Engineered for use with 2.5 in. up to 6 in. of lift

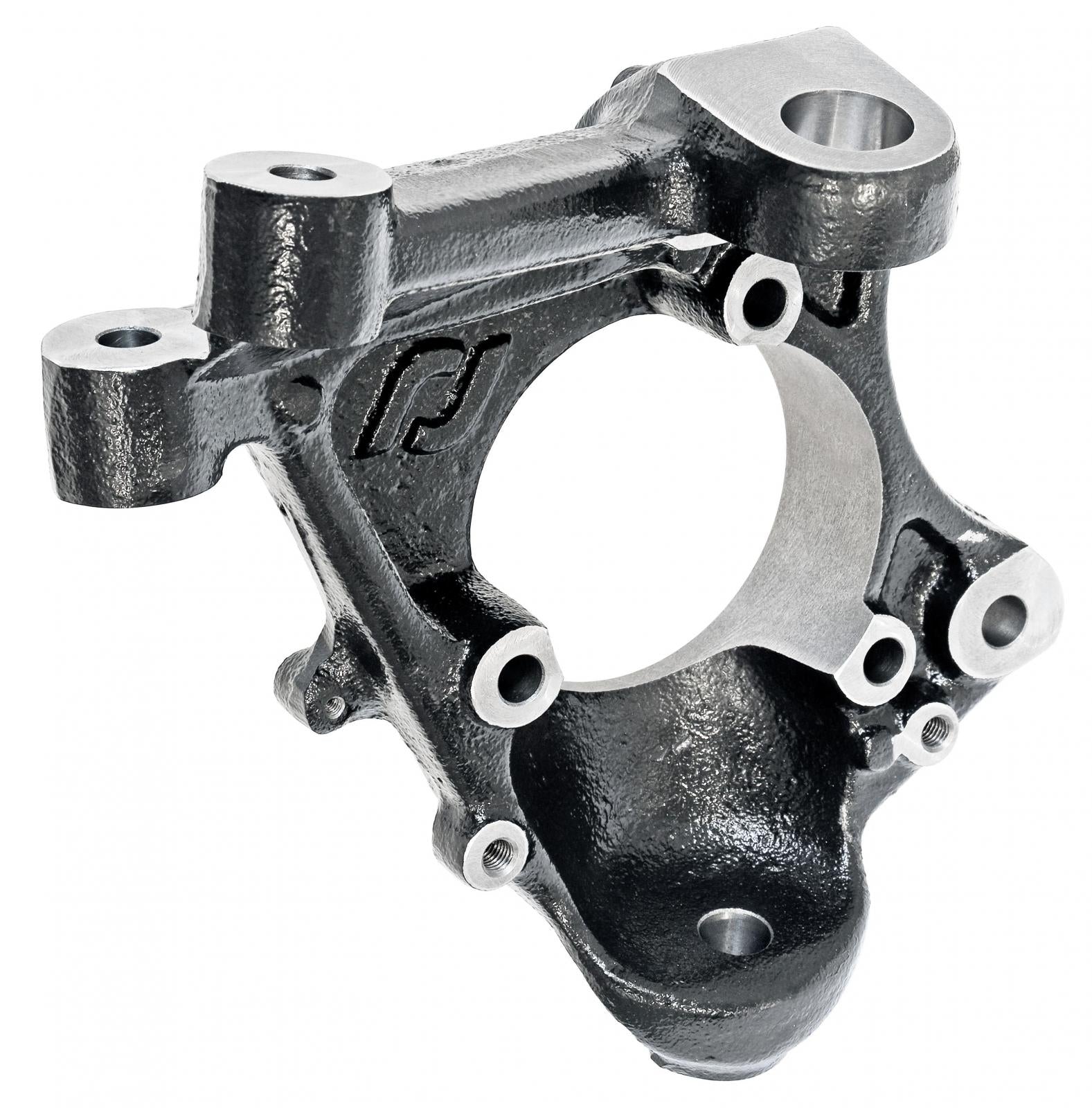

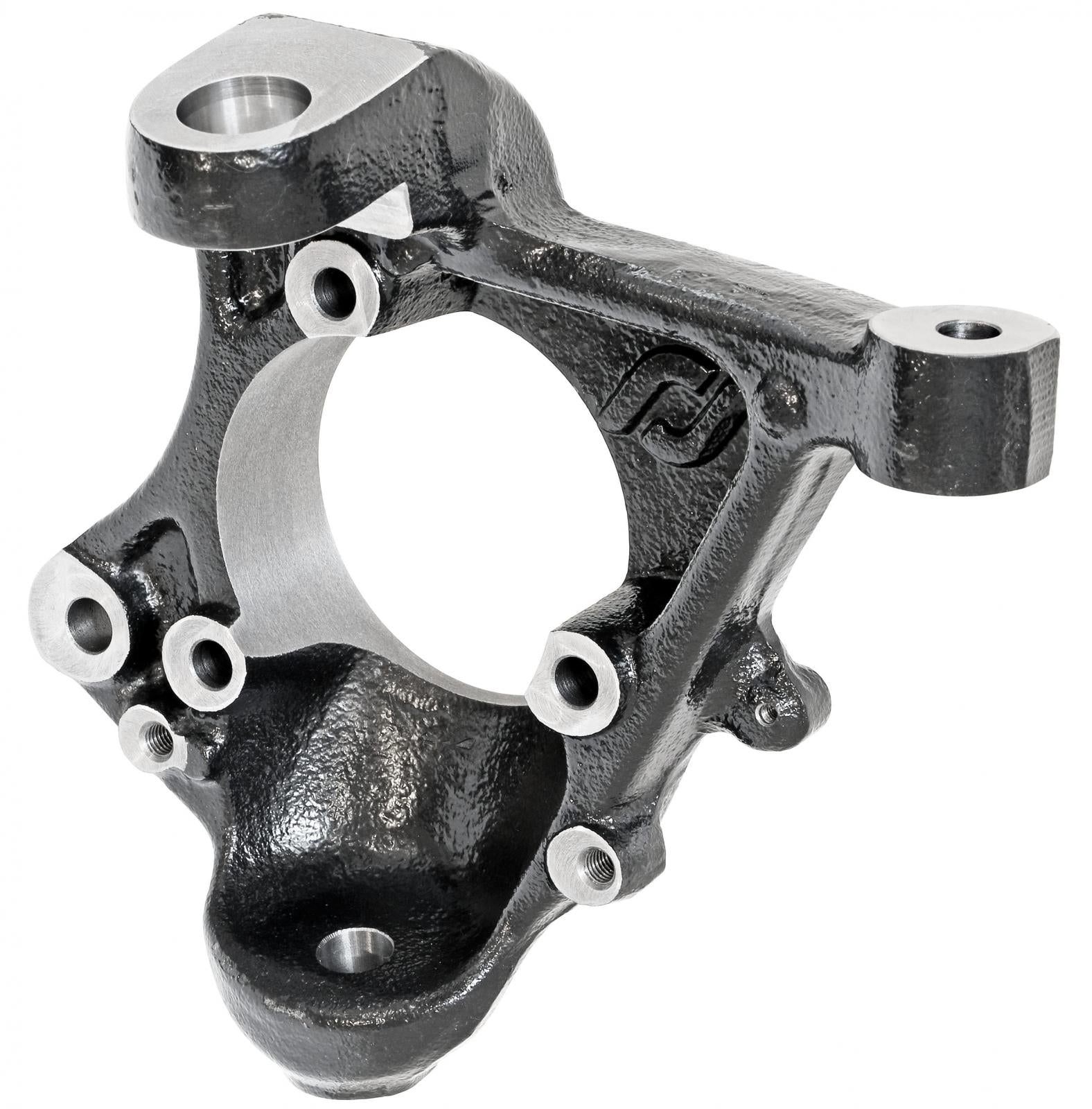

Knuckles (included)

Knuckles feature two adjustable steering stop locations (fore and aft of axle centerline) for full lock-to-lock adjustability which helps ease the strain on steering components at full lock

Allows for ALL factory outer components to be retained, including ball joints, unit bearings, outer axles, brakes and dust shields
OEM JL/JT aluminum knuckles are replaced with RockJock's cast 65-45-12 ductile iron knuckles. The stock aluminum knuckles often fail at the taper and ball joint press holes over time. RockJock knuckles exceed OEM quality and strength
NOT a flip kit! Knuckles feature longer, raised steering arms that push the tie rod outward, away from the axle slightly, allowing for tighter steering angle over that of stock and 1 ton axles

RH Knuckle features a rearward tipping of the upper, tapered drag link mounting hole to help the rod end head clear 17 in. wheels (mandatory), with up to stock offset/backspacing of ET=44.45

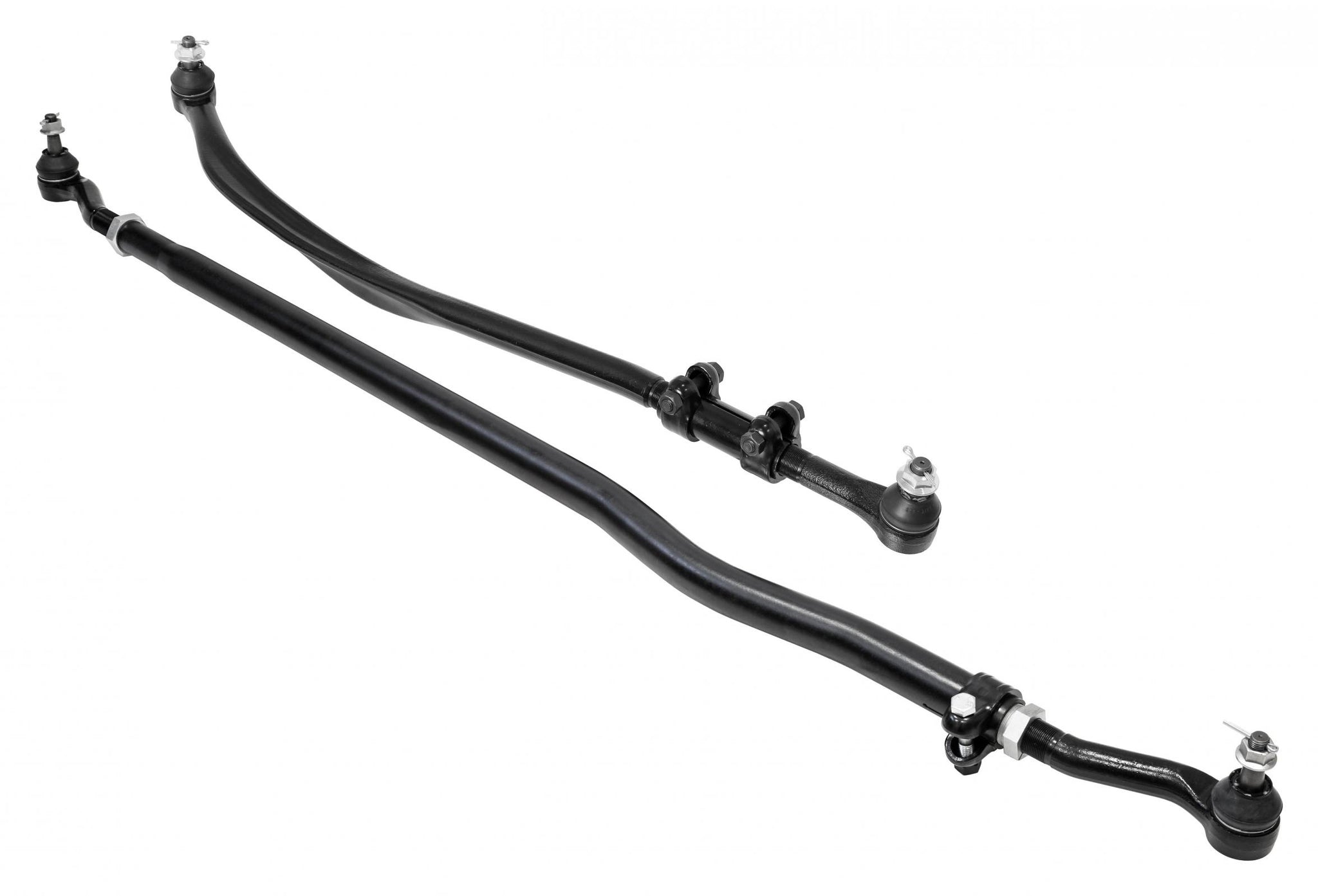

Steering (included)

Drag Link is raised 2.50 in.
Tie Rod is raised 2.75 in.
Raising of steering rods puts them back to stock geometry after vehicle is lifted restoring factory steering geometry for improved drivability and overall road comfort on a lifted rig
Raising of steering rods puts them out of harm's way
Dip in tie rod and dip in drag link allow for maximum up travel, requiring only 2.2 in. (gas), 1.1 in. (diesel) and .188 in. (392) of bump stop, as opposed to a 3.0 in. bump stop on most competitor kits
Vehicles already equipped with RockJock steering (with forged drag link) can reuse their steering

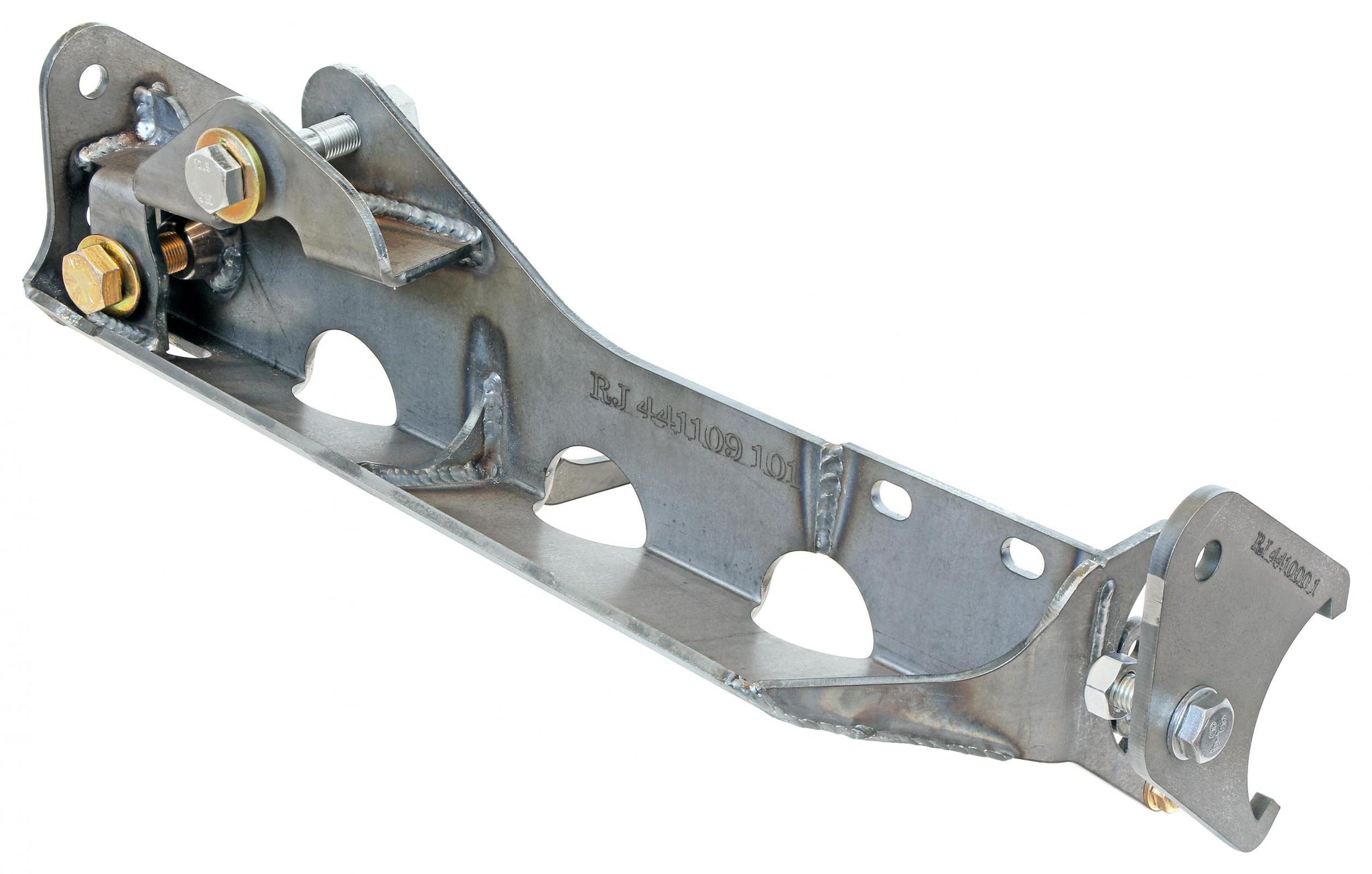

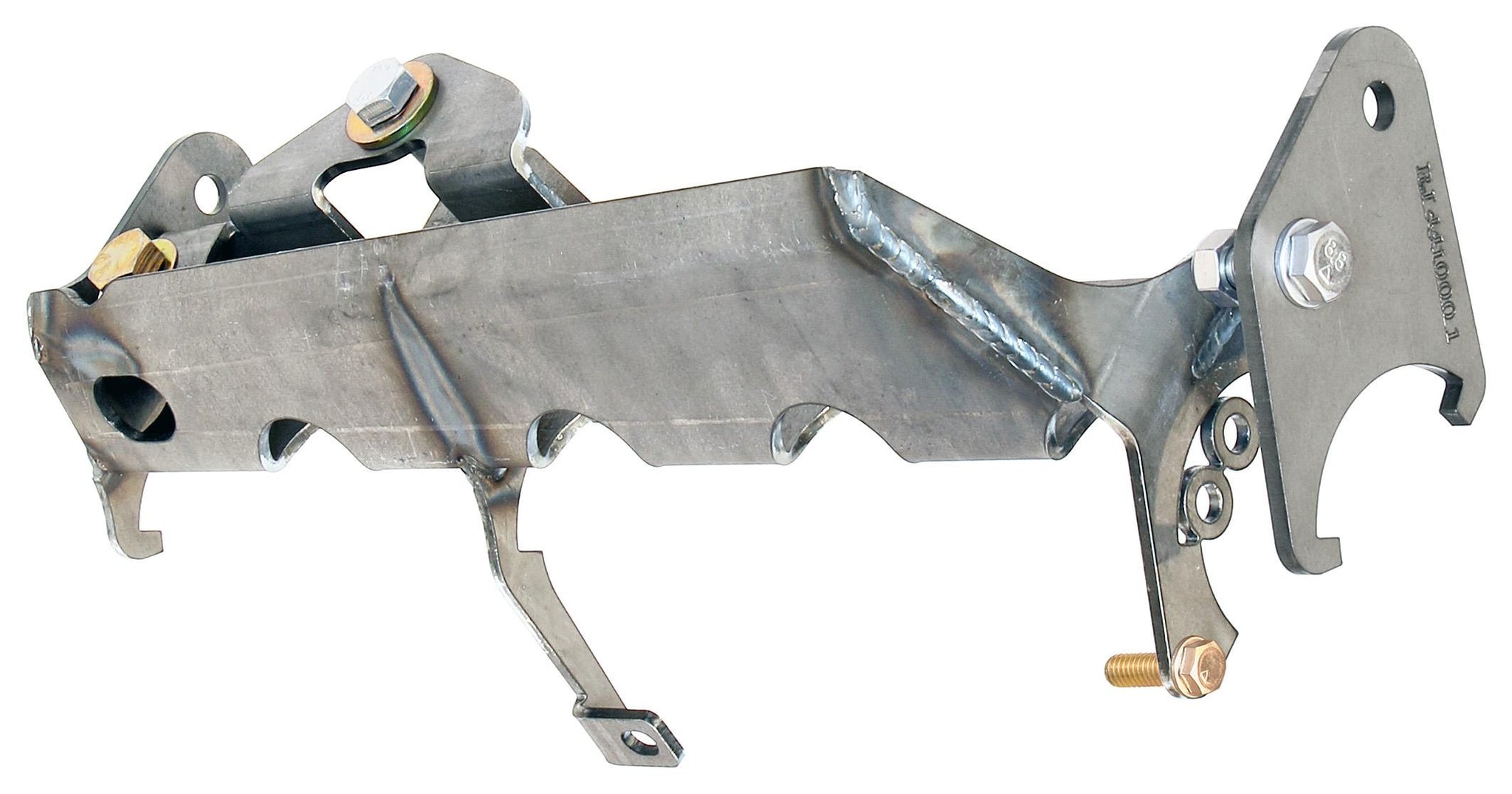

Bracket Kit (included)

Bracket kit relocates the trac bar mounting point up 2.50 in. for corrected front end geometry, improving stability, reducing body roll, and preventing bump steer

Hydraulic assist ram bracket kit requires trimming of the factory trac bar bracket on the axle housing and requires some minor welding

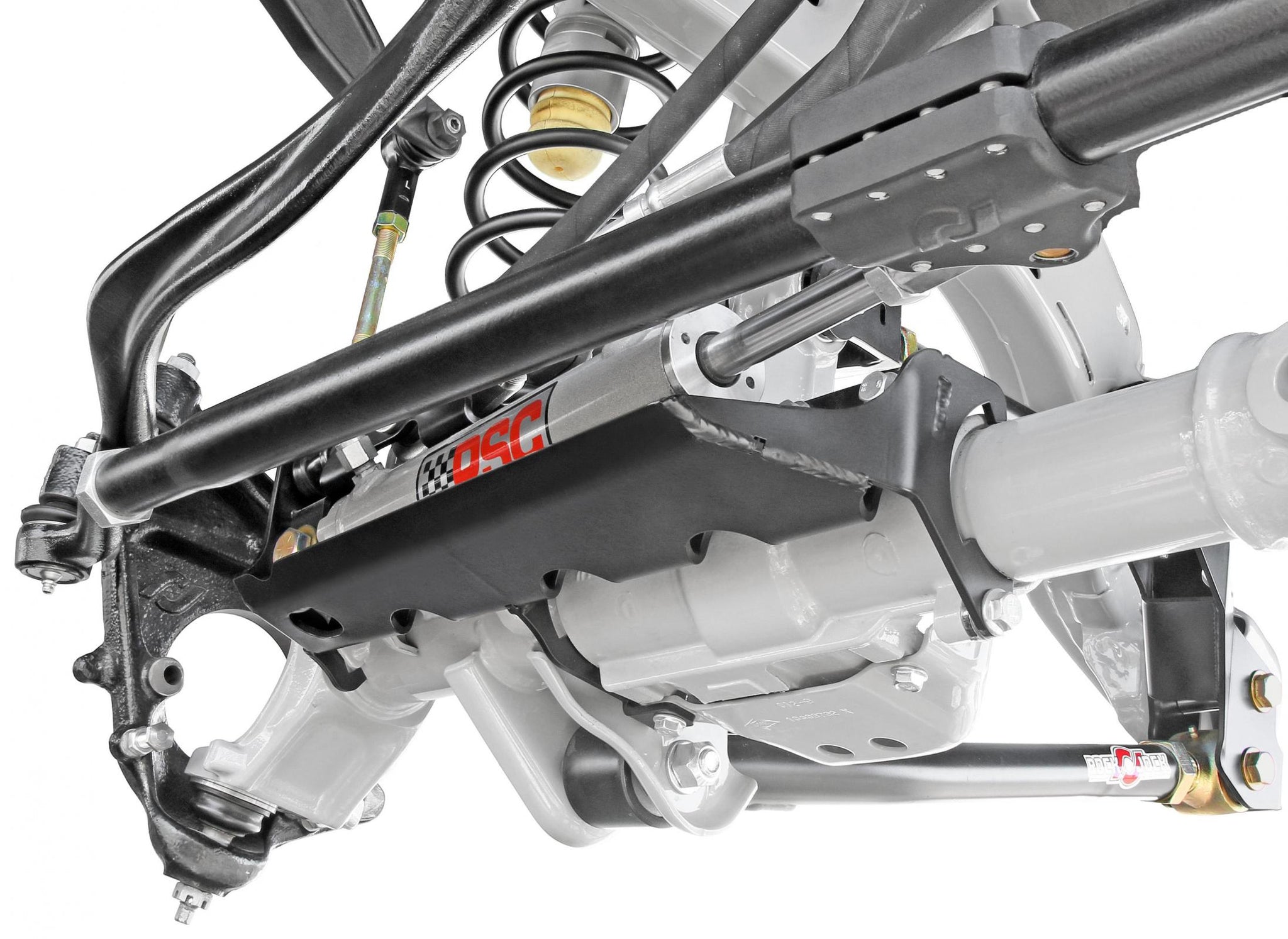

Bracket for hydraulic ram assist features a skid plate, incorporated into the bracket, to protect the ram from rock strikes

Optional Equipment

The use of RockJock's forged, RJ-9120FJLF forged chromoly organically shaped trac bar and RJ-107100-101 adjustable bump stop kit are recommended for ease of achieving the up travel that these components are capable of, as engineered (vehicles already equipped with RockJock forged, organically shaped trac bar can reuse their trac bar)

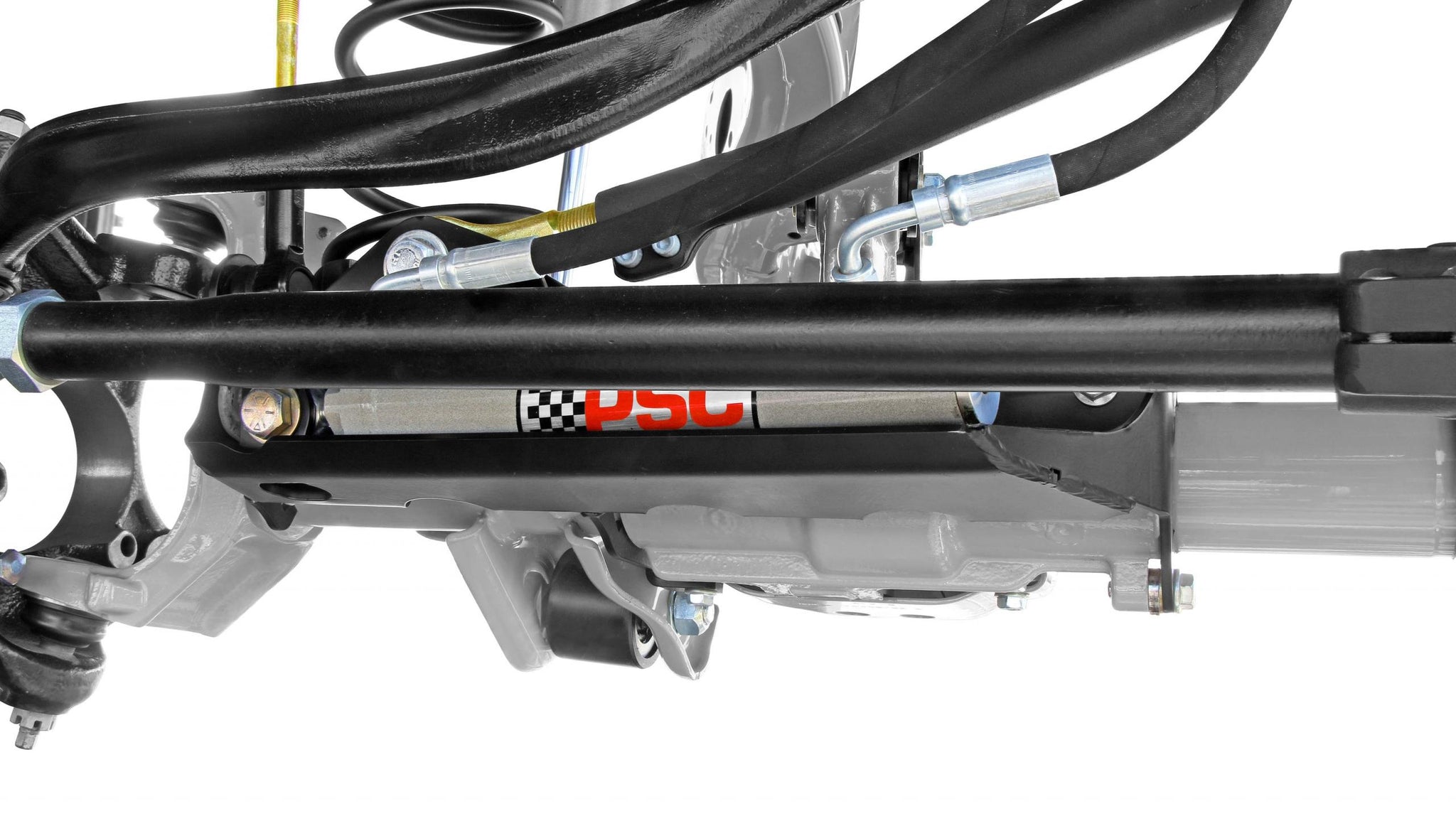

Hydraulic Ram Assist Notes:

This kit is intended for use in conjunction with PSC's part number CAK691-RJ (UPC: 687927190273) ram and ram assist steering kits. This part number is an 8 in. travel ram with limiters installed to give it the ideal 7.375 in. stroke for the RockJock High Steer Kit, allowing it to achieve full potential (factory steering radius).

Diff Cover Notes:

With regards to differential cover clearance, this system was engineered around an OEM cover. Aftermarket diff covers may need to be clearanced to allow the stabilizer shock tie rod bracket to clear. However, be aware, some diff covers may not work at all

Warranty-2-year limited warranty

Parts List:

• High Steer Knuckles (pair): RJ-447100-101
• Currectlync Drag Link: RJ-442103-101
• Currectlync Tie Rod: RJ-442101-103
• Trac Bar Relocation and Ram Mount Axle Bracket: RJ-441109-103

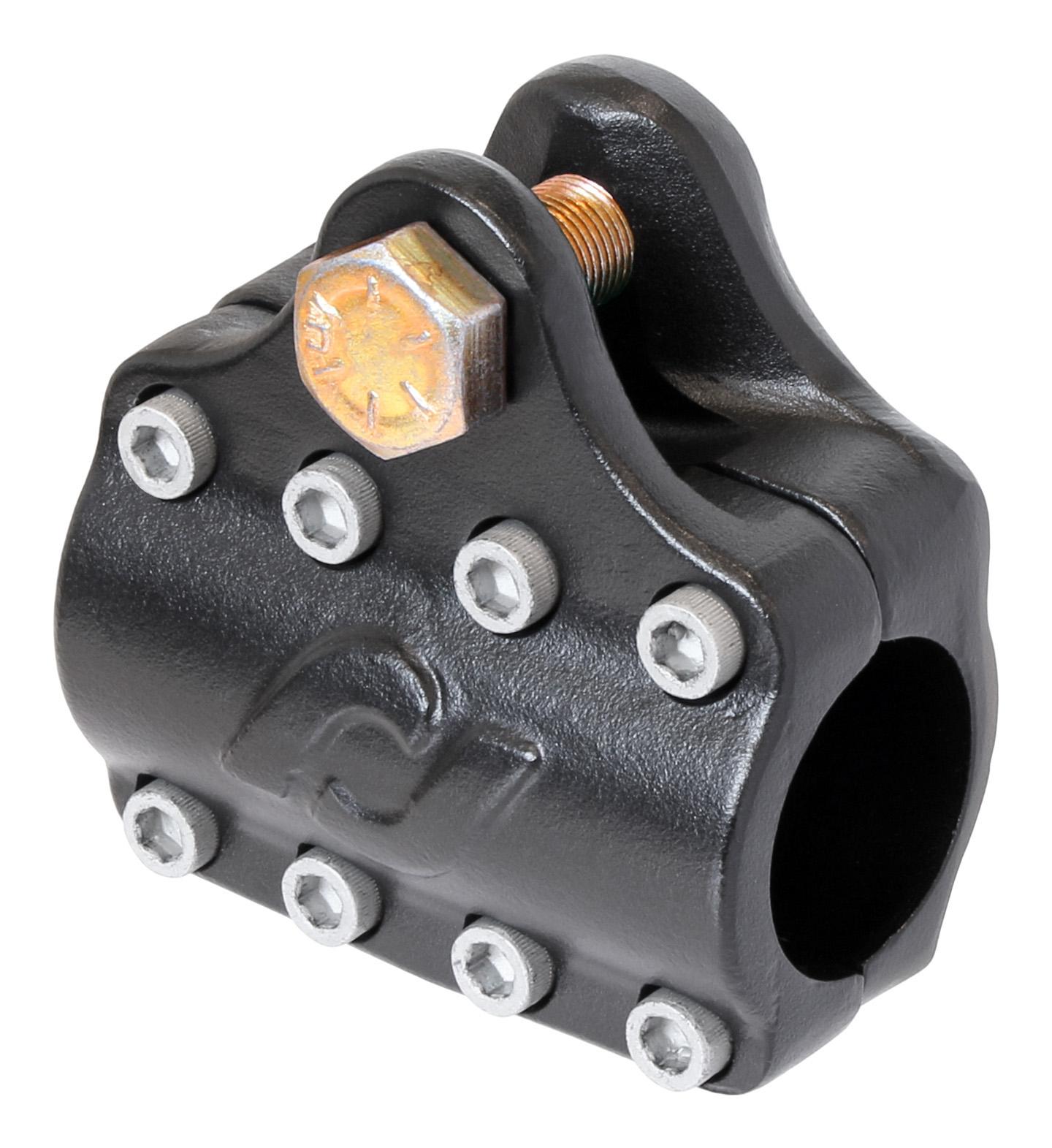

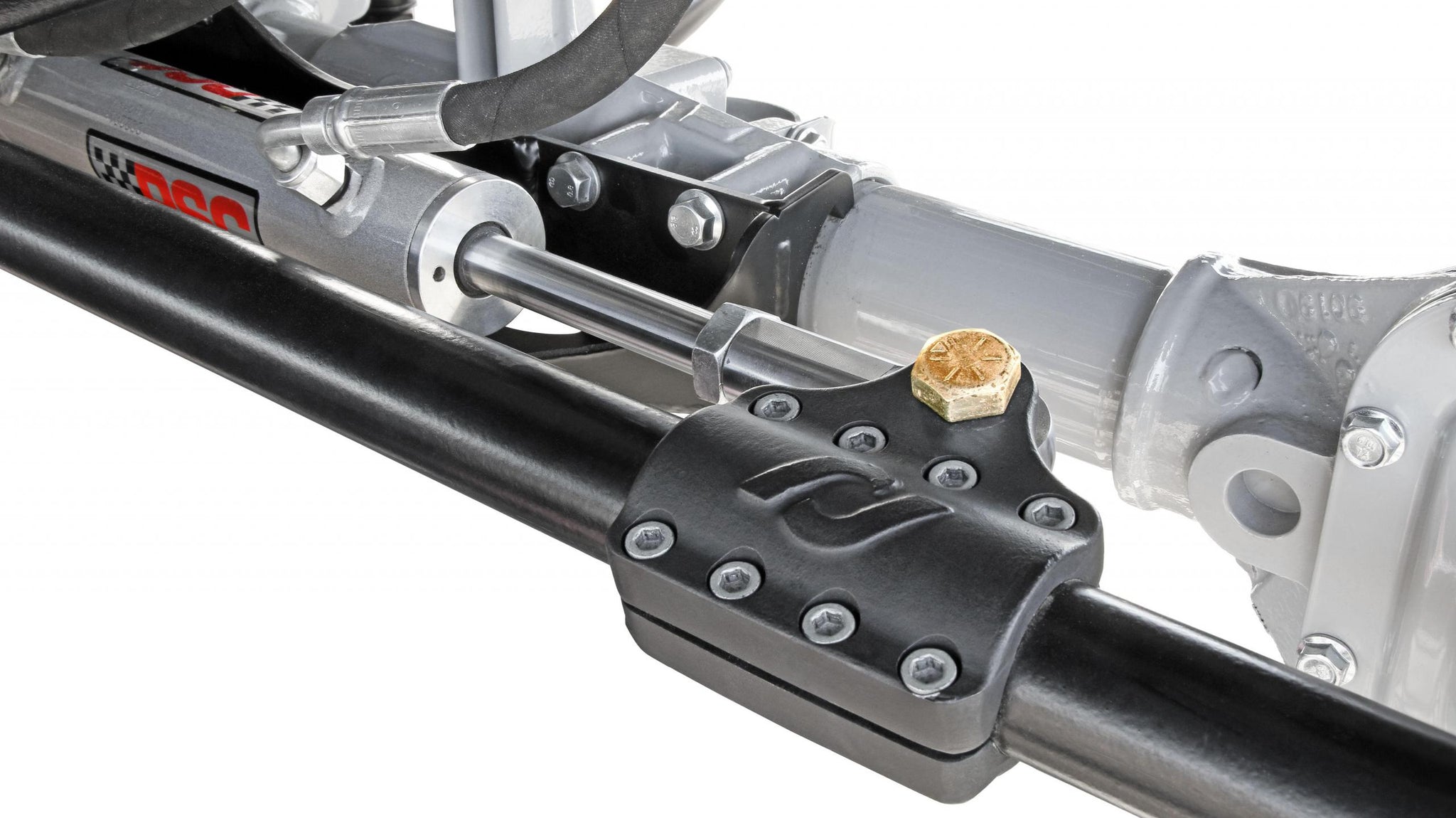

• Ram Assist Tie Rod Clamp: RJ-401001-101
