Roll Cage Bracket Kit for Jeep JKU Motobilt - MB3032 - Motobilt

Motobilt
HJQL_MB3032
MB3032
Roll Cage
$529.00 $476.10

Roll Cage Bracket Kit for Jeep JKU Motobilt - MB3032 - Motobilt

Build your own custom JKU 4 Door tubular cage!

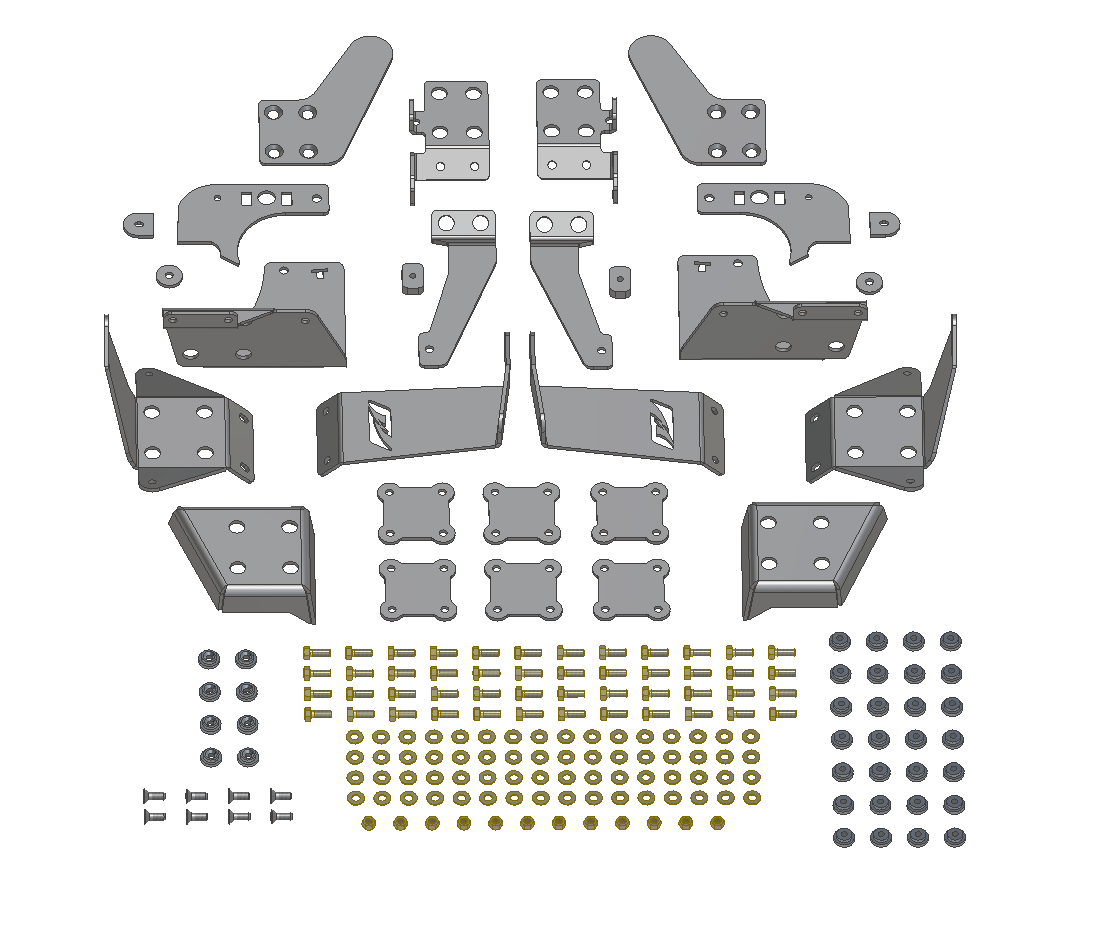

This premium Builder Kit includes 28 specially designed plates that precisely set all of the difficult starting points for fabricating your own tubular cage. All connections allow you to design and build your cage then unbolt it from the vehicle using our unique machined threaded weld nuts. This allows you to completely remove your cage for final welding, powder coating or painting.

A-PILLAR:

  • The lower A-Pillar connections bolt into the existing substructure behind the dash. We provide plates that bolt to these hidden connections to provide mounts for a lower windshield dash tube. The lower A-Pillar connections reuse some factory hardware and we also provide all of the necessary new grade 8 fastener hardware to make installation fast. Our lower A-Pillar connections also bolt through the factory reinforced areas of the door openings.
  • The upper A-Pillar connections bolt into existing factory mounting locations and include cut outs that allow you to reuse your factory sun visors. The upper A-Pillar connections provide you with locations to mount driver and passenger side upper tubes. These connections also allow you to still fold your windshield down.

B-PILLAR:

  • The lower B-Pillar connections make use of some factory mounts while also drilling through the floor. We provide machined weld nuts that allow you to bolt on our Tubing Foot Plates making for a complete lower bolted connection. Our lower B-Pillar connections include cut outs allowing you to reuse your factory seat belts.
  • We provide plates that make a bolted connection for fastening the upper B-Pillars to your cage. These plates simply bolt into existing factory mounting locations. Fasteners included.

C-PILLAR:

  • The lower C-Pillar connections are located off existing factory mounts with some additional drilling required through the body. We include plates that fit over the existing studs that secure the rear seat. This still allows you to remove your rear seats, if desired. The lower C-Pillar connections also include machined weld nuts and our Tubing Foot Plates making for secure bolted connections. Fasteners included.

D-PILLAR:

  • Our lower D-Pillar connections fit over the existing D-Pillar locations. Our D-Pillar connections get welded to the body and include our weld nuts and Tube Foot Plates for yet another strong bolted connection. Fasteners included.
  • If you have always wanted to build your own roll cage but didn't know where to start, we have the solution for you!
  • We recommend using a minimum of 1.75 inch OD x 0.120 inch wall DOM tubing when building your cage (tubing not included). This kit will work with 2.0 inch OD x 0.120 inch wall DOM tubing as well.

Notes:

  • This kit is designed for 2007-2018 Jeep JKU 4 Door models. There are factory variations in the dash and substructure for different model years. Some modification to parts of this kit may be required. This kit will NOT fit 2 door models.
  • This is a Builder Kit, thus, it goes without saying that extensive fabrication and disassembly of the vehicle is required. This kit does NOT tie the tubular cage into the frame.
  • We do NOT show you how to build a tubular cage. The intent of this kit is to provide you with all of the major connection points for you to design and install your own custom tubular cage.
  • All plates are shipped as bare steel. All weld nuts and fasteners are shipped loose. Welding is required.


As Motobilt's number one dealer, JeepHut is proud to offer such and amazing line up of parts for your Jeep and offroad vehicle. Motobilt offers industry leading, American-made off-road parts, focusing on quality and precision. Every product is built in-house, ensuring reliable performance for your adventures. Let us be your go-to source for industry leading, top-notch gear and support in your off-road journey.
