Behind the Seat Fuel Cell and Mount w/ Pump Cut Out Combo for Jeep YJ Motobilt - MB5000-YJ-Mount - Motobilt

Motobilt
HJQL_MB5000-YJ-Mount
MB5000-YJ-Mount
Fuel Cell
$618.00 $556.20

Behind the Seat Fuel Cell and Mount w/ Pump Cut Out Combo for Jeep YJ Motobilt - MB5000-YJ-Mount - Motobilt

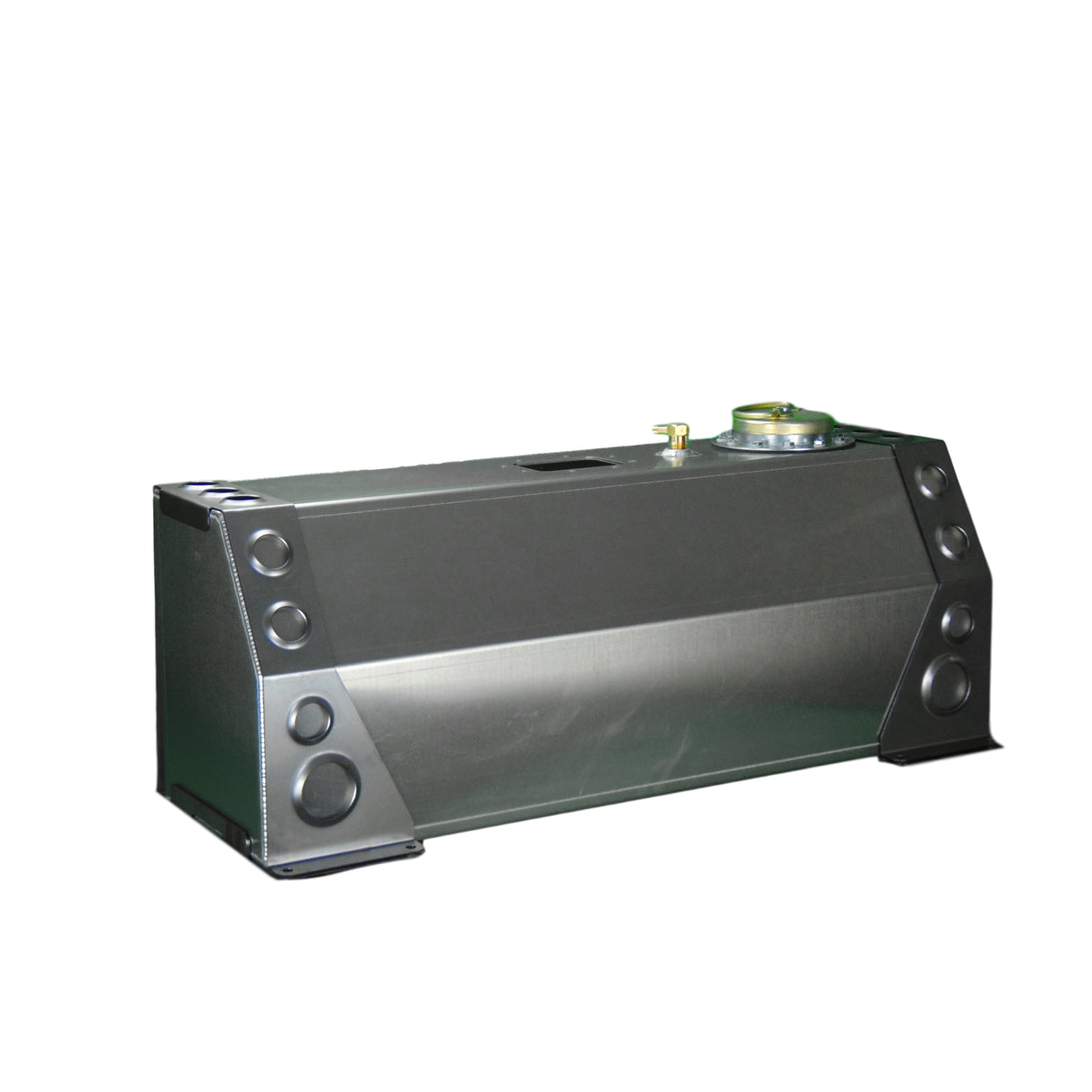

Check out the Motobilt Jeep YJ fuel tank with factory rectangular fuel pump cut out and mount package.. This tank is industry leading in that is was designed specifically for the YJ to maximize fuel capacity while retaining the rear seat. Motobilt offers a solution for relocating the fuel tank in your Jeep YJ. There are a few universal options available like the popular RCI 2161a which is basically a rectangular aluminum fuel cell.

It was not designed specifically for the Jeep YJ. The Motobilt Jeep YJ fuel tank was designed to fit behind the rear seat, use the factory rectangular fuel pump, and maximize the space behind the seat. It is actually contoured and angled to fit behind the seat.

The tank has a capacity of roughly 18 US gallons. The Motobilt fuel tank is CNC cut from 1/8 inch aluminum and formed on a press brake. The tank is TIG welded for ultimate strength. The tank includes a large D-ring style cap. This can be converted to remote fill by purchasing a different filler neck system that utilizes a 12 bolt, 5.38 bolt circle flange.

This package includes the 2 clamp down bodies capture the top and all four sides of the tank and bolt securely to the mounting base. These parts are CNC Laser Cut but from 16 gauge steel. The parts are formed on a hydraulic press break. This mount will ensure your fuel cell is mounted securely.

Specifications:

  • Jeep YJ behind the seat fuel tank with cutout for factory rectangular fuel pump.
  • Brass roll over valve with 90-degree barbed hose fitting for use with vent line.
  • Cut out for factory rectangular fuel pump.
  • Fuel pump extension bracket
  • Designed to fit behind the rear seat
  • CNC cut from 1/8 inch aluminum
  • Press brake formed
  • Tank includes a large D-ring style cap
  • 18 US gallons capacity

This fuel cell is used for applications where you are extending the wheel base and the rear axle would contact the factory fuel tank. It would also be used in situations where more ground clearance is needed. This kit works perfectly with the Motobilt Jeep YJ Back Half Kit where the frame rails are moved up and in for ultimate clearace.


We have included a mount specifically for the MB5000-YJ Fuel Cell. The kit consists of three parts: the main under tank plate and two clamp bodies. The under tank plate is CNC Laser Cut from .125 inch high strength steel plate. Mounting brackets are included!

Dimensions:

  • 12 1/2 inchs tall
  • 7 inchs wide at the top of the tank
  • 10 1/4 inchs wide at the bottom of the tank
  • 34 inchs long

Notes:

  • We recommend using Permatex Form-A-Gasket number 2 for the fuel pump mounting surface and on the fuel filler cap assembly, where they mate to the fuel cell.
  • For Off-Road Use Only


As Motobilt's number one dealer, JeepHut is proud to offer such and amazing line up of parts for your Jeep and offroad vehicle. Motobilt offers industry leading, American-made off-road parts, focusing on quality and precision. Every product is built in-house, ensuring reliable performance for your adventures. Let us be your go-to source for industry leading, top-notch gear and support in your off-road journey.
