Our new 2007-2018 Jeep Wrangler JK Overland Plus suspension lift systems are designed to provide the Ultimate in on road performance, while offering the offroad flex and performance you need for your next off road adventure.

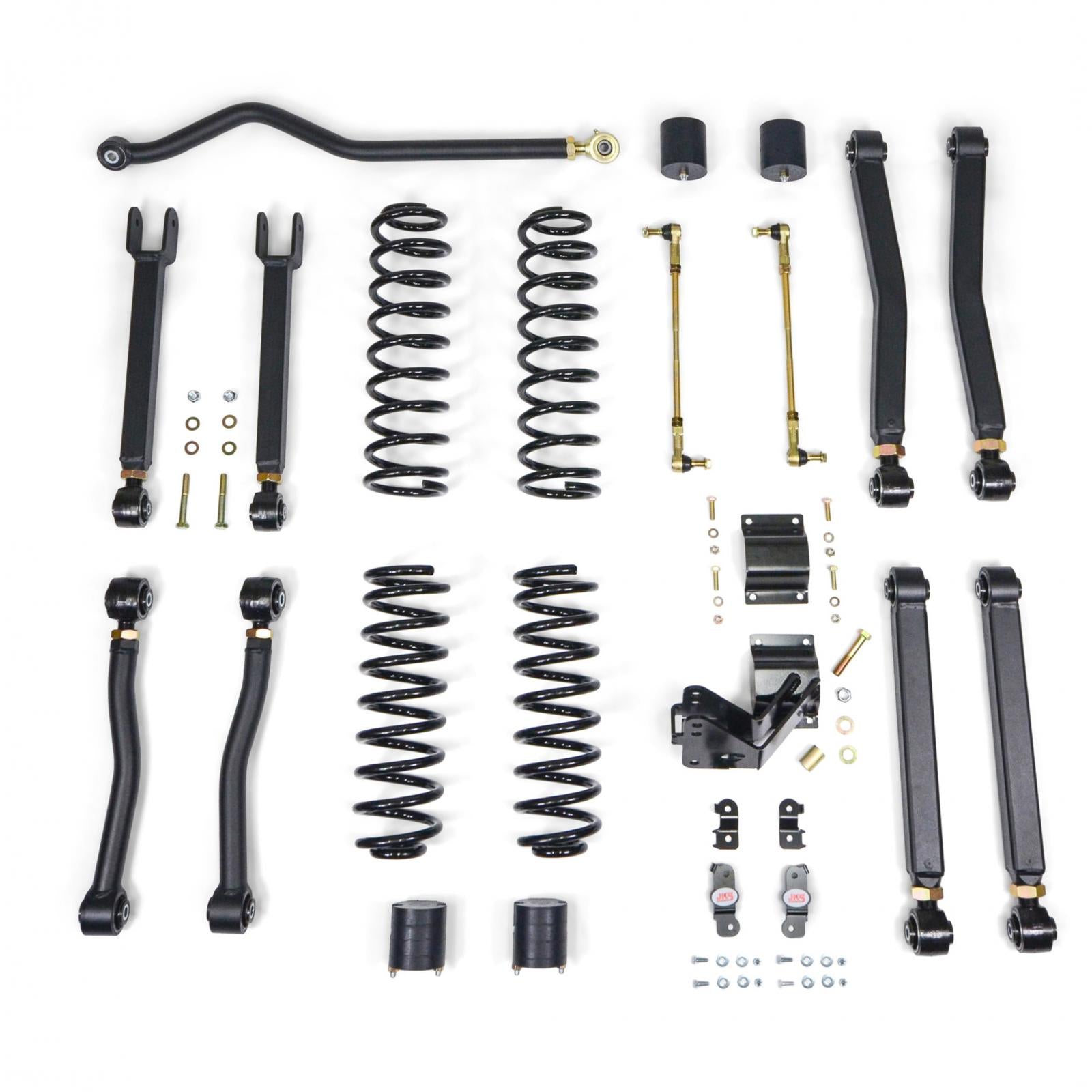

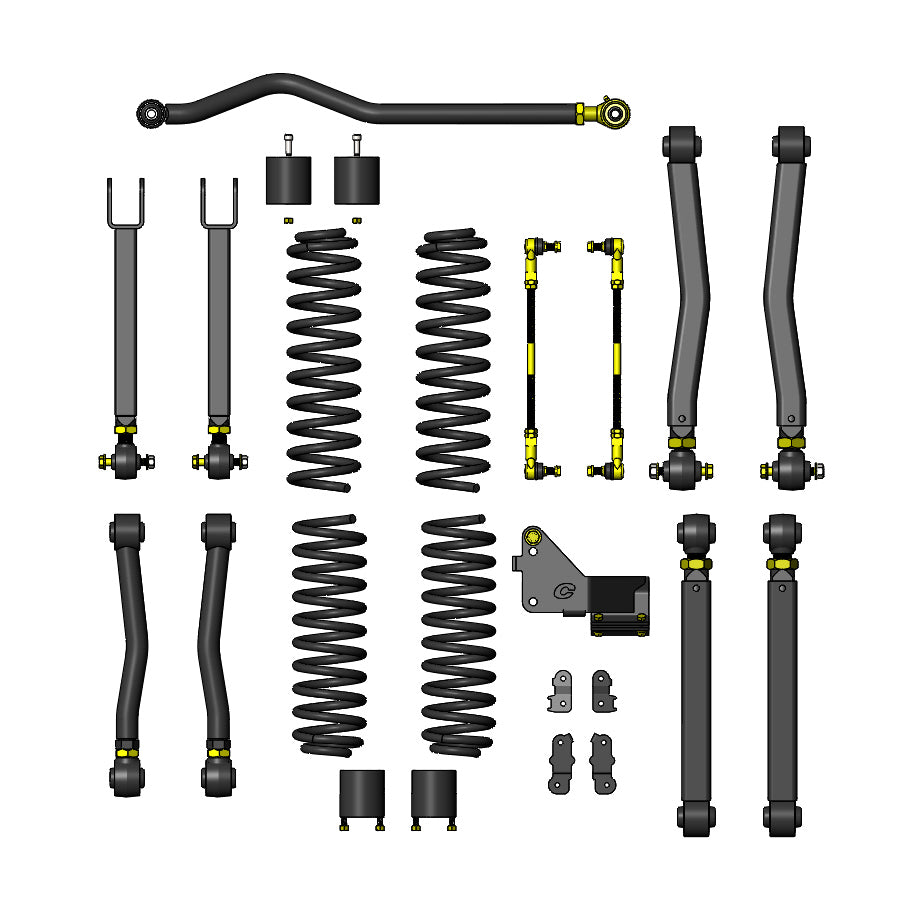

These are complete bolt on systems that are fully adjustable and can be installed using basic shop tools. The Overland Plus mid-arm system has adjustable control arms front and rear, an adjustable front track bar, rear track bar bracket, adjustable sway bar end links, bump stops front and rear, brakeline extensions, and all four coils. A system engineered with strength and reliability as a top priority.
The system includes eight adjustable control arms, which carry a lifetime warranty against bending or breaking. The lower front and rear upper arms are dog legged for tire clearance. They are bent properly so the joints are in line at both ends. Our Overland Plus arms feature our new dual durometer self-centering, maintenance free Giiro joint bushings.
The Giiro joint, with it structured anatomy and superior isolator technology, has bridged the void between rubber and flex joints for the ultimate bushing. Giiro is a free pivoting, self-lubricating, self-centering, silent in operation and maintenance free bushing. Its structured anatomy matched with superior material formulation allows two distant worlds to meet as one, providing the desirable comfort for daily driving and easily transitioning to meet the extreme limits on rugged off-road terrain.
The Giiro is also used at one end of our adjustable track bar. The other end has a johnny joint for superior flex, and with a 5 inch long 1 inch shank, you have the maximum adjustment necessary, and of course comes with our lifetime warranty.
Our 4.5 inch Overland Plus kit is designed to run a 37 inch and up tire with proper backspacing.
Note: 1. Shocks are optional and we recommend Bilstien or Fox. 2. Front CV Style Driveshaft is recommended. 3. On 2012-2018 models an exhaust spacer is recommended. 4. Rear adjustable track bar is required on 2 dr models.
Details:
- Bolt In Design
- 8 Fully Adjustable Control Arms
- Maintenance Free Giiro Joints
- Dual Durometer, Self Centering Joints
- Premium Adjustable Track Bar
- Rear Adjustable Swaybar Links
- Heavy Duty Reinforced Track Bar Bracket
- Brakeline Relocation Kit
- Lifetime Warranty
- Made in the USA
- Fits: 2007-2018 Jeep Wrangler JK
Specifications:
This Part Fits:
Year |
Make |
Model |
Submodel |
Notes |
2007 |
Jeep |
Wrangler |
X |
|
2008 |
Jeep |
Wrangler |
X |
|
2009 |
Jeep |
Wrangler |
X |
|
2010 |
Jeep |
Wrangler |
X |
|
2007 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2008 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2009 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2010 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2011 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2012 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2013 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2014 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2015 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2016 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2017 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2007 |
Jeep |
Wrangler |
Rubicon |
|
2008 |
Jeep |
Wrangler |
Rubicon |
|
2009 |
Jeep |
Wrangler |
Rubicon |
|
2010 |
Jeep |
Wrangler |
Rubicon |
|
2011 |
Jeep |
Wrangler |
Rubicon |
|
2012 |
Jeep |
Wrangler |
Rubicon |
|
2013 |
Jeep |
Wrangler |
Rubicon |
|
2014 |
Jeep |
Wrangler |
Rubicon |
|
2015 |
Jeep |
Wrangler |
Rubicon |
|
2016 |
Jeep |
Wrangler |
Rubicon |
|
2017 |
Jeep |
Wrangler |
Rubicon |
|
2007 |
Jeep |
Wrangler |
Unlimited X |
|
2008 |
Jeep |
Wrangler |
Unlimited X |
|
2009 |
Jeep |
Wrangler |
Unlimited X |
|
2010 |
Jeep |
Wrangler |
Unlimited X |
|
2007 |
Jeep |
Wrangler |
Sahara |
|
2008 |
Jeep |
Wrangler |
Sahara |
|
2009 |
Jeep |
Wrangler |
Sahara |
|
2010 |
Jeep |
Wrangler |
Sahara |
|
2011 |
Jeep |
Wrangler |
Sahara |
|
2012 |
Jeep |
Wrangler |
Sahara |
|
2013 |
Jeep |
Wrangler |
Sahara |
|
2014 |
Jeep |
Wrangler |
Sahara |
|
2015 |
Jeep |
Wrangler |
Sahara |
|
2016 |
Jeep |
Wrangler |
Sahara |
|
2017 |
Jeep |
Wrangler |
Sahara |
|
2007 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2008 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2009 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2010 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2011 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2012 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2013 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2014 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2015 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2016 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2017 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2010 |
Jeep |
Wrangler |
Unlimited Sport |
|
2011 |
Jeep |
Wrangler |
Unlimited Sport |
|
2012 |
Jeep |
Wrangler |
Unlimited Sport |
|
2013 |
Jeep |
Wrangler |
Unlimited Sport |
|
2014 |
Jeep |
Wrangler |
Unlimited Sport |
|
2015 |
Jeep |
Wrangler |
Unlimited Sport |
|
2016 |
Jeep |
Wrangler |
Unlimited Sport |
|
2017 |
Jeep |
Wrangler |
Unlimited Sport |
|
2010 |
Jeep |
Wrangler |
Sport |
|
2011 |
Jeep |
Wrangler |
Sport |
|
2012 |
Jeep |
Wrangler |
Sport |
|
2013 |
Jeep |
Wrangler |
Sport |
|
2014 |
Jeep |
Wrangler |
Sport |
|
2015 |
Jeep |
Wrangler |
Sport |
|
2016 |
Jeep |
Wrangler |
Sport |
|
2017 |
Jeep |
Wrangler |
Sport |
|
2011 |
Jeep |
Wrangler |
70th Anniversary |
|
2011 |
Jeep |
Wrangler |
Unlimited 70th Anniversary |
|
2016 |
Jeep |
Wrangler |
75th Anniversary |
|
2016 |
Jeep |
Wrangler |
Sport S |
|
2016 |
Jeep |
Wrangler |
Unlimited Sport S |
|
2016 |
Jeep |
Wrangler |
Unlimited 75th Anniversary |
|
2018 |
Jeep |
Wrangler JK |
Unlimited Rubicon |
|
2018 |
Jeep |
Wrangler JK |
Sport |
|
2018 |
Jeep |
Wrangler JK |
Unlimited Sahara |
|
2018 |
Jeep |
Wrangler JK |
Sahara |
|
2018 |
Jeep |
Wrangler JK |
Unlimited Sport |
|
2018 |
Jeep |
Wrangler JK |
Rubicon |
|
