Jeep Cherokee 6.5 Inch Pro Series 3 Link Long Arm Lift Kit W/Rear Coil Conversion 84-01 XJ Clayton Off Road - COR-3601131 - Clayton Off Road

GQHS_COR-3601131
COR-3601131
Long Arm Lift Kits
$5,219.00

customers are viewing this product
Jeep Cherokee 6.5 Inch Pro Series 3 Link Long Arm Lift Kit W/Rear Coil Conversion 84-01 XJ Clayton Off Road - COR-3601131 - Clayton Off Road

XJ 6.5 Inch Pro Series 3 Link Long Arm Lift Kit W/Rear Coil Conversion (3.00 Inch Axle Tube Size)

Clayton Off Road Inc. builds the ultimate 3 link front, 4 link rear suspension system. We start by using pro series arms. Pro series arms feature forged johnny joints at both ends for maximum flex and adjustability. We use the same 3 piece cross member used in all our long arm kits for easy access to your transmission. The new 3 link mount comes welded to this 3 piece cross member along with a 1/4 uni-body brace which wraps around the unibody for added strength. If you are using a stock D30 front axle you can use the optional 3 link bridge or truss. This gives you a very strong mounting location to attach the top 3 link axle mount. This mount will NOT work on any aftermarket axle. We will include a standard 3 link mount which you can to your axle or bridge depending on our axles configuration. Another advantage is our HD trackbar and double sheer drop bracket. The trackbar bracket is laser cut, CNC bent, and put the large 2.5 inch forged Johnny Joint in double sheer, allowing for maximum flex. The trackbar uses a HD bushing which uses a grade 8, 9/16s bolt at the axle end. When using the Pro-Series lower arms, we highly recommend the Heavy duty lower control arms, which have a skid plate to protect the lower johnny joint. The rear part of the kit is designed to build off of our front XJ long arm cross member.

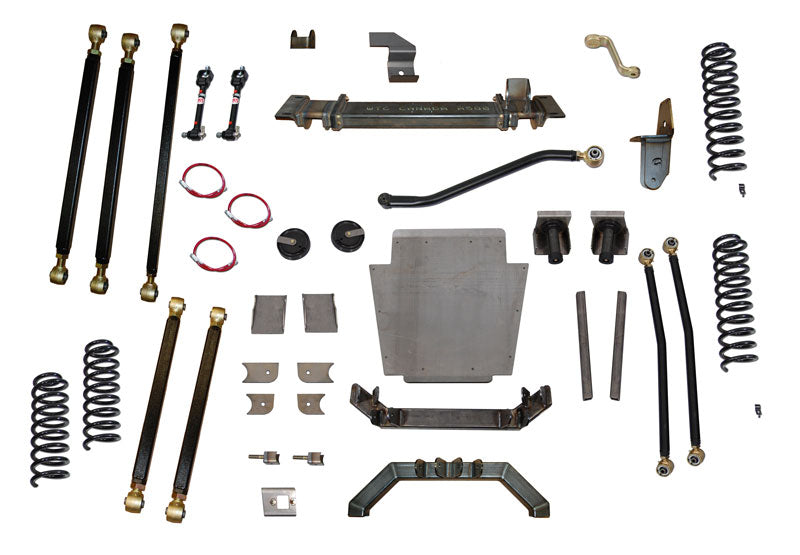

The kit consists of a new weld in cross member, Вј flat skid plate, 2 support rails, complete high clearance axle bracket kit, new upper coil buckets, 1 new upper shock bracket and upper and lower adjustable long arms. This kit is intended for the more experienced customer or high end fab shop because it requires welding, cutting, and modifying the unibody frame rails. A custom exhaust will need to be rerouted, and depending on your model year you may need to move your e-brake cables. Basically this is not an easy kit to install, but its benefits are amazing. You get a great ride because of the change from leaf springs to coil springs. The 4 link suspension eliminates any axle wrap issues you may have had with standard leaf springs. And the flex is truly amazing.

NOTE: 1. Shocks are optional and we recommend the Bilstein 5100s. 2.Welding and cutting is required to install this lift kit. 3. Custom exhaust is required. 4. Moving the e-brake bracket maybe necessary on certain models/years. 5. A SYE kit and CV style driveshaft is required.


Specifications:

Availability Available


This Part Fits:

Year Make Model Submodel Notes
1984 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1985 Jeep Cherokee Chief
1986 Jeep Cherokee Chief
1987 Jeep Cherokee Chief
1988 Jeep Cherokee Chief
1985 Jeep Cherokee Laredo
1986 Jeep Cherokee Laredo
1987 Jeep Cherokee Laredo
1988 Jeep Cherokee Laredo
1989 Jeep Cherokee Laredo
1990 Jeep Cherokee Laredo
1991 Jeep Cherokee Laredo
1992 Jeep Cherokee Laredo
1985 Jeep Cherokee Pioneer
1986 Jeep Cherokee Pioneer
1987 Jeep Cherokee Pioneer
1988 Jeep Cherokee Pioneer
1989 Jeep Cherokee Pioneer
1990 Jeep Cherokee Pioneer
1987 Jeep Cherokee Limited
1988 Jeep Cherokee Limited
1989 Jeep Cherokee Limited
1990 Jeep Cherokee Limited
1991 Jeep Cherokee Limited
1992 Jeep Cherokee Limited
1989 Jeep Cherokee Sport
1990 Jeep Cherokee Sport
1991 Jeep Cherokee Sport
1992 Jeep Cherokee Sport
1993 Jeep Cherokee Sport
1994 Jeep Cherokee Sport
1995 Jeep Cherokee Sport
1996 Jeep Cherokee Sport
1997 Jeep Cherokee Sport
1998 Jeep Cherokee Sport
1999 Jeep Cherokee Sport
2000 Jeep Cherokee Sport
2001 Jeep Cherokee Sport
1991 Jeep Cherokee Briarwood
1992 Jeep Cherokee Briarwood
1993 Jeep Cherokee Country
1994 Jeep Cherokee Country
1995 Jeep Cherokee Country
1996 Jeep Cherokee Country
1997 Jeep Cherokee Country
1994 Jeep Cherokee SE
1995 Jeep Cherokee SE
1996 Jeep Cherokee SE
1997 Jeep Cherokee SE
1998 Jeep Cherokee SE
1999 Jeep Cherokee SE
2000 Jeep Cherokee SE
2001 Jeep Cherokee SE
1996 Jeep Cherokee Classic
1998 Jeep Cherokee Classic
1999 Jeep Cherokee Classic
2000 Jeep Cherokee Classic
2001 Jeep Cherokee Classic
1998 Jeep Cherokee Limited
1999 Jeep Cherokee Limited
2000 Jeep Cherokee Limited
2001 Jeep Cherokee Limited
