Part Number: FUS-SF60-TLJ
Brand: Fusion
For current axle lead times and shipping details: See this page
***Not ABS Compatible***

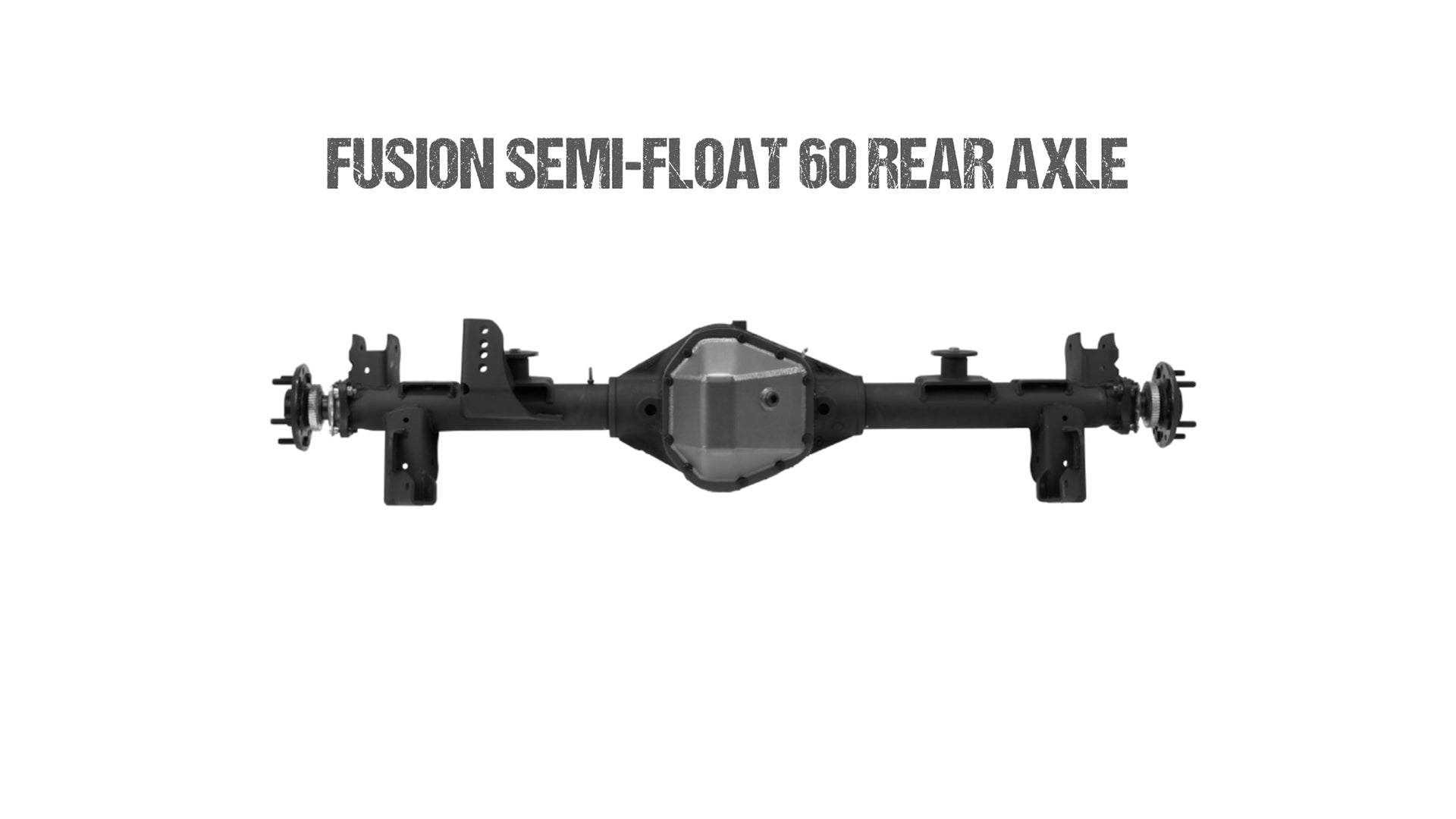

Fusion Semi-Float 60 Rear Axle for Jeep TJ, LJ, XJ, WJ, ZJ, and YJ sets the standard with class leading strength. The axle shares the same differential casting and axle tubes as our Elite Full Float 60 rear axle assemblies, making it the strongest semi-float 60 rear axle available.
Features and Specifications:
- Fusion HD low pinion differential, providing significantly more ring & pinion strength as compared to a high pinion rear 60
- Fusion HD Nodular Iron Differential Cover
- Massive 3.5" Diameter 1/2" wall DOM Axle Tube
- Fusion HD Forged 35 Spline 4130 heat treated chromoly axle shafts
- 5x4.5, 5x5, 5x5.5 Bolt Pattern Options
- Forged U-bolt style yoke with U-bolt kit
- 9.75" Dana 60 Ring & Pinion
- Selection of Dana 60 Carrier and locker options
- Available in various widths
- Optional heavy duty 1/4" laser cut and CNC bent brackets
- Fusion High Performance Commercial Paint Application
- Designed and manufactured in the USA
Warranty
- 5 year structural housing warranty
- Lifetime axle shaft warranty
- 5 year parts warranty on gears and lockers
