Part Number: FUS-SF9-TLJ
Brand: Fusion
For current axle lead times and shipping details: See this page
***Image Shown with Optional Brake Package***
***Not ABS Compatible***

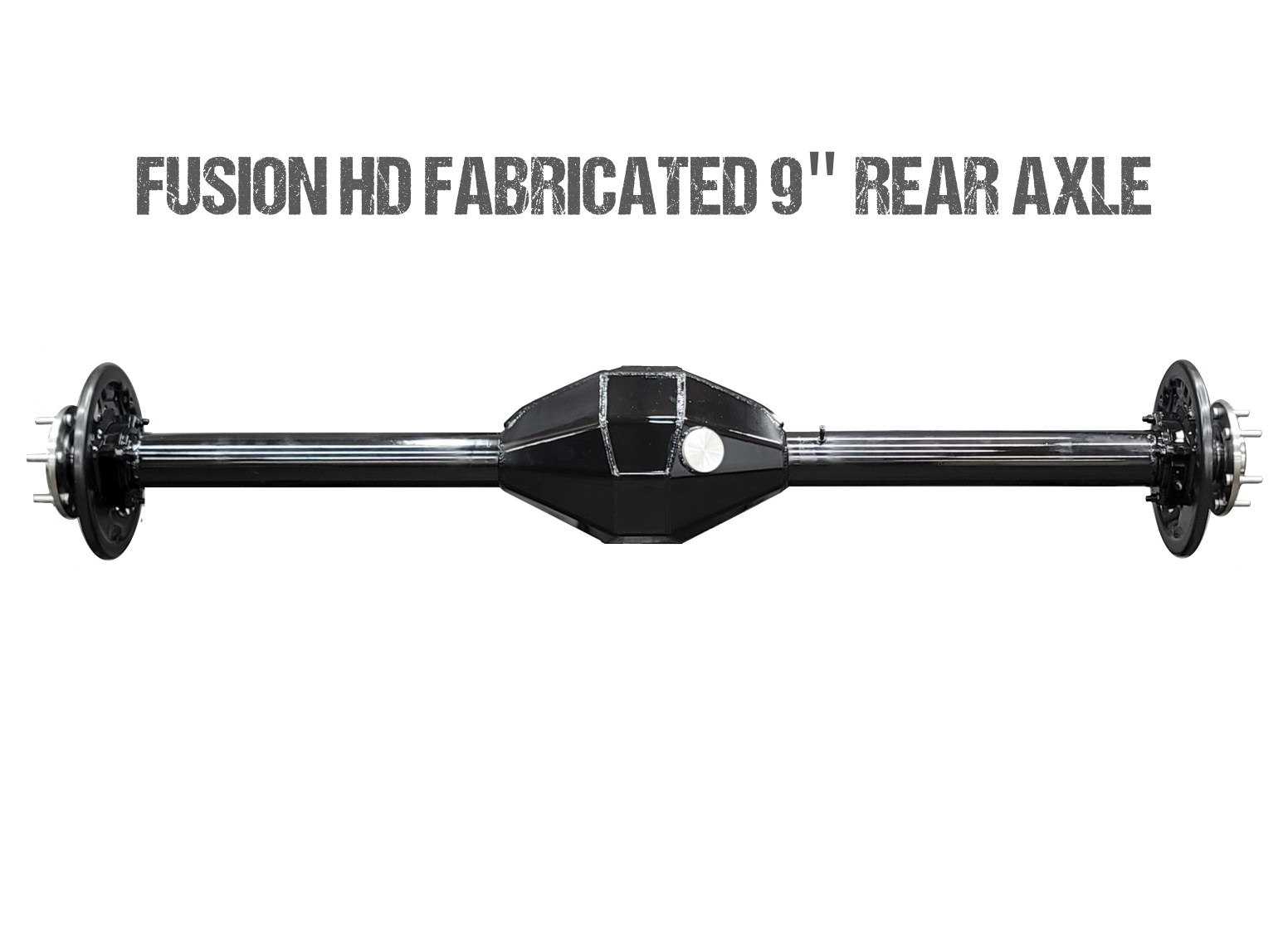

Fusion Low Pinion Fabricated 9", 35 Spline, Semi-Float HD Rear Axle for Jeep TJ, LJ, XJ, WJ, ZJ, and YJ sets the standard with class leading strength.

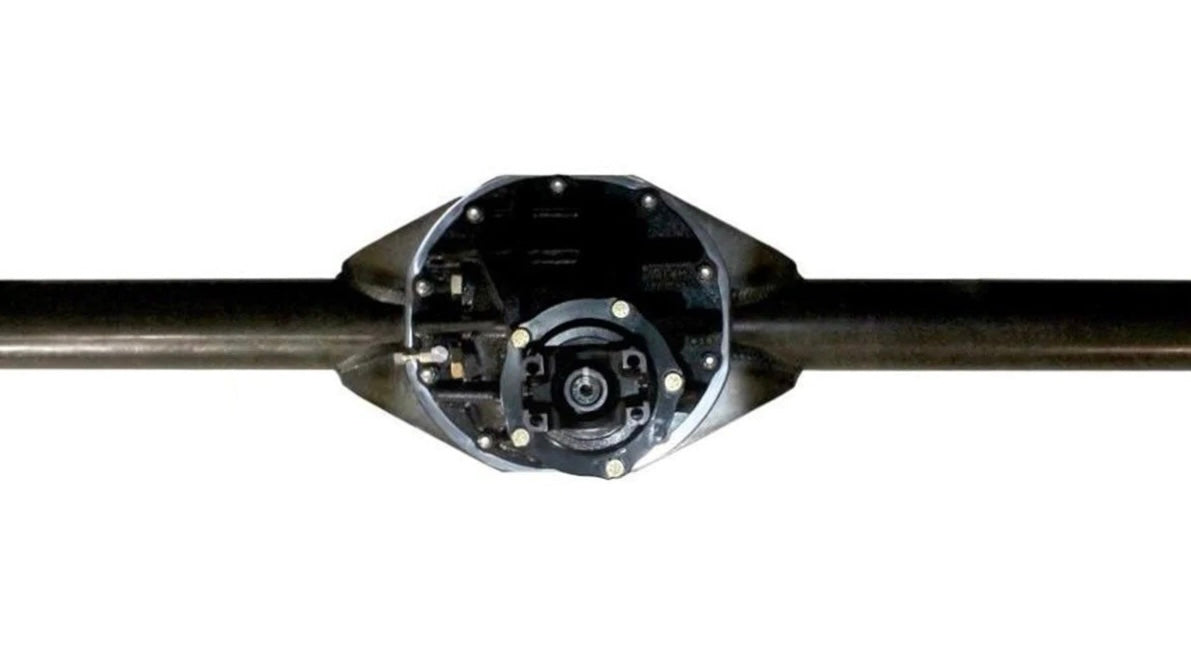

The Fusion Fabricated 9" rear axle housing, with 3.5" x 3/8" wall DOM axle tubes along with 1/4" and 1/2" high strength A572 steel center section, is designed to handle heavy loads and punishing terrain.
HIGHLIGHTS:
- Included Fusion HD 9" dropout 3rd member with 35 spline pinion provides a significant strength increase over the OE axle
- Rock avoiding ground clearance measuring 5.5" from center of tubes to bottom of center section
- Included forged and heat treated 35 Spline Chromoly Axle Shafts with optional wheel lug patterns
- Available option to reuse the factory brakes
- Optional HD Laser Cut and CNC Bent bracket kit, making the axle bolt-in ready
- Available in OE width, wide widths, or custom width
- Option to Ship painted with a durable 3-step commercial coating in gloss black
Just add gear oil and you are ready to roll!
Warranty
- 5 year structural housing warranty
- Lifetime axle shaft warranty
- 5 year parts warranty on gears and lockers
