Part Number: FUS-E44-TLJ
Brand: Fusion
For current axle lead times and shipping details: See this page

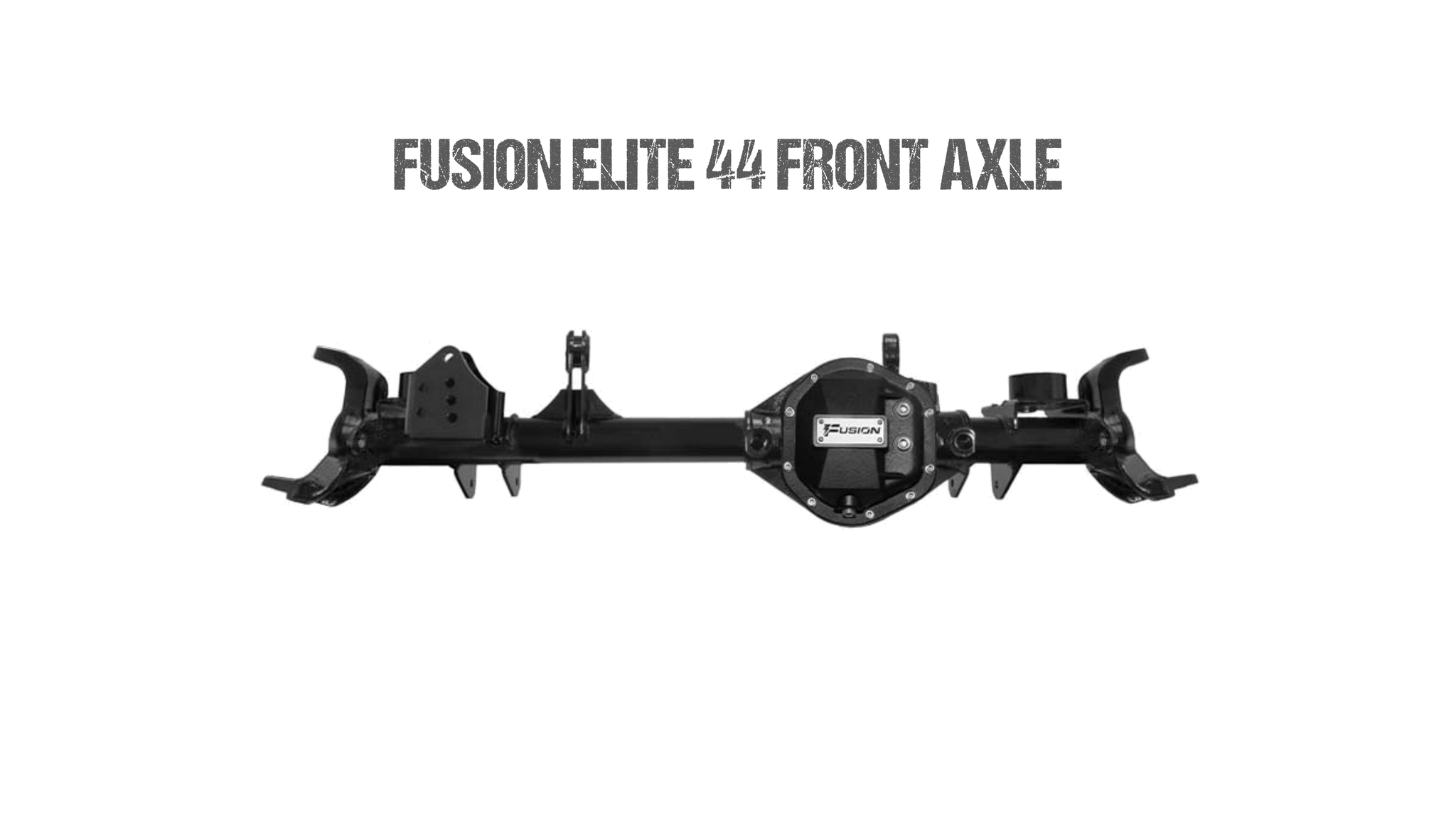

Fusion 44 Front Axle
- Fusion Heavy Duty High Pinion 44 C-to-C Axle Housing
- Fusion Heavy Duty Forged TJ/LJ/XJ Inner Cs

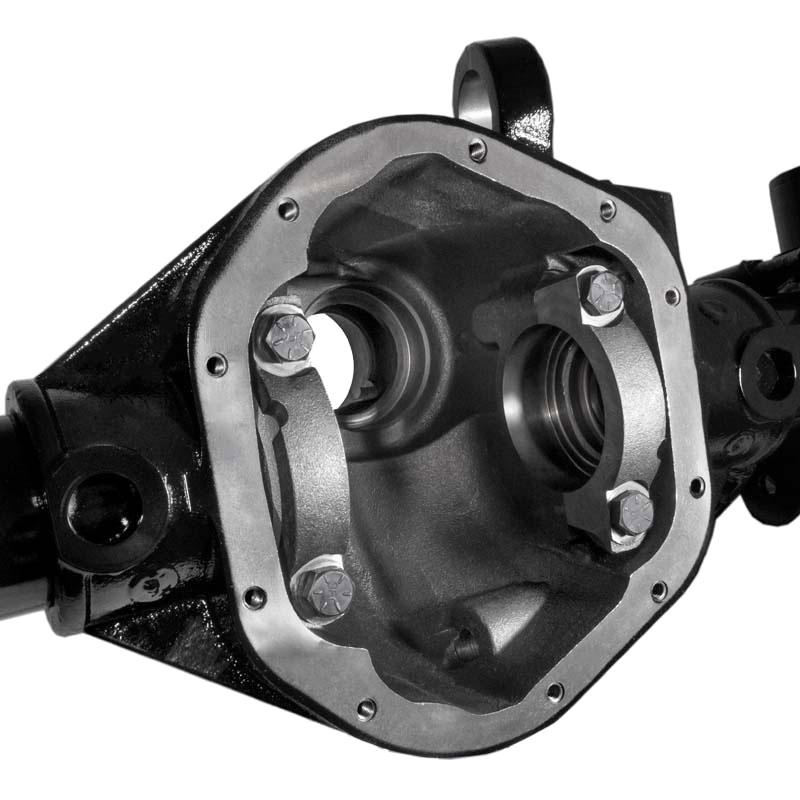

- High strength 44 center casting utilizing the larger Jeep JK Rubicon Ring and pinion
- Fusion Heavy Duty Nodular Iron Differential Cover
- Large 3.0" diameter DOM axle tubes with 1/2" wall thickness
- 60.5" Width (same as stock), with optional widths available
- Optional heavy duty 1/4" laser cut and CNC bent brackets with Johnny Joint Upper Control Arm Bushings
- Designed and manufactured in the USA
- Increased Caster for a total of 10 degrees of separation compared to 6 degrees on a stock axle (e.g. 5 degrees of caster and 5 degree positive pinion angle) - custom adjustment available
- Accepts the factory knuckles or after market high steer knuckles
- 30 Spline Inner and 27 Spline Outer 4340 Chromoly Axle shafts
- Optional Ball Joints
- Choice of Gear Ratio and Locker Type
- Commercial paint coating
- Shipped Fully Assembled and Ready for Factory Outer Components
The Fusion Elite 44 front axle offers the same ground clearance of a factory Jeep JK Dana 44, while providing significantly more strength than the OE housing.
Warranty
- 5 year structural housing warranty
- Lifetime axle shaft warranty
- 5 year parts warranty on gears and lockers
