Rock Krawler 4.5 X-Factor X2 Pro Elite Coilover Long-Arm Suspension System for Jeep Wrangler JK

The Rock Krawler Suspension 4.5 X - Factor X2 Pro Elite Coilover Long-Arm System is the ultimate in compromise between daily driver/hard core off-roader. The X - Factor systems combine the benefits of a full high clearance independent 3 link front suspension with a high clearance independent 3 link rear suspension.

The PRO Elite signifies you are entering the realm of PB&J (Pure Beef AND Jealousy) by purchasing a system that is outfitted with 4 Billet Aluminum CNC Machined lower control arms in a long-arm length! This is where conventional on-road handling meets bad ass off-road ability.

Up Front we have our proven 3 - link geometry with larger than factory hardware, a double adjustable front upper arm and wider than factory mounting width at the axle. This makes for an incredibly strong setup that is fit for the highways of America or any trail you may traverse all while providing maximum articulation at peak performance.

The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center (s) and rear roll center (s). The new high clearance axle mounts provide 3.5 inch of ground clearance under the rear axle as compared to stock.

The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance independent 3 link long-arm front suspension and high clearance independent 3 link rear long-arm suspension lets you dominate the streets and the trails.

The Comp System (Front Coilovers w/Rear Coil Combination) is ideal for those that want the adjustability and performance of coilover racing shocks up front, but still want to use their Wrangler to carry small loads or tow small trailers. There are two options for the Comp Systems you can choose from.

The standard or Stage 1 System features 2 5/8 RRD Racing Coilovers w/Remote Reservoirs up front paired with matching 2 5/8 RRD Racing Shocks w/Remote Reservoirs in the rear for a well tuned package. Or you can opt for the Stage 2 Comp System which will include Fast CD (Compression Dampening) Adjusters on the coilovers and rear shocks for an even greater level of tuneability.

When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, in tow or down a trail! Thank you for considering Rock Krawler Suspension.

System Benefits:

• Excellent Highway Ride
• Improved Off-Road Ability High Clearance Independent 3 Link Long-Arm Front/Rear Suspension Weld On Long-Arm Mounting Brackets With Weld Scheduling Just Like OEM Heat Shield Thermal Barrier Products, Just Like OEM to Protect The Front Control Arm Joints At The Frame 3.5 inch Rear Clearance Gain From The X2 Axle Bracket System
• Adjustable Rear Anti-Squat Featuring X2 Geometry Designed To Be The Ultimate Compromise Between On Highway Handling And Hard Core Off-Road Ability
• Lifetime Warranty Coverage

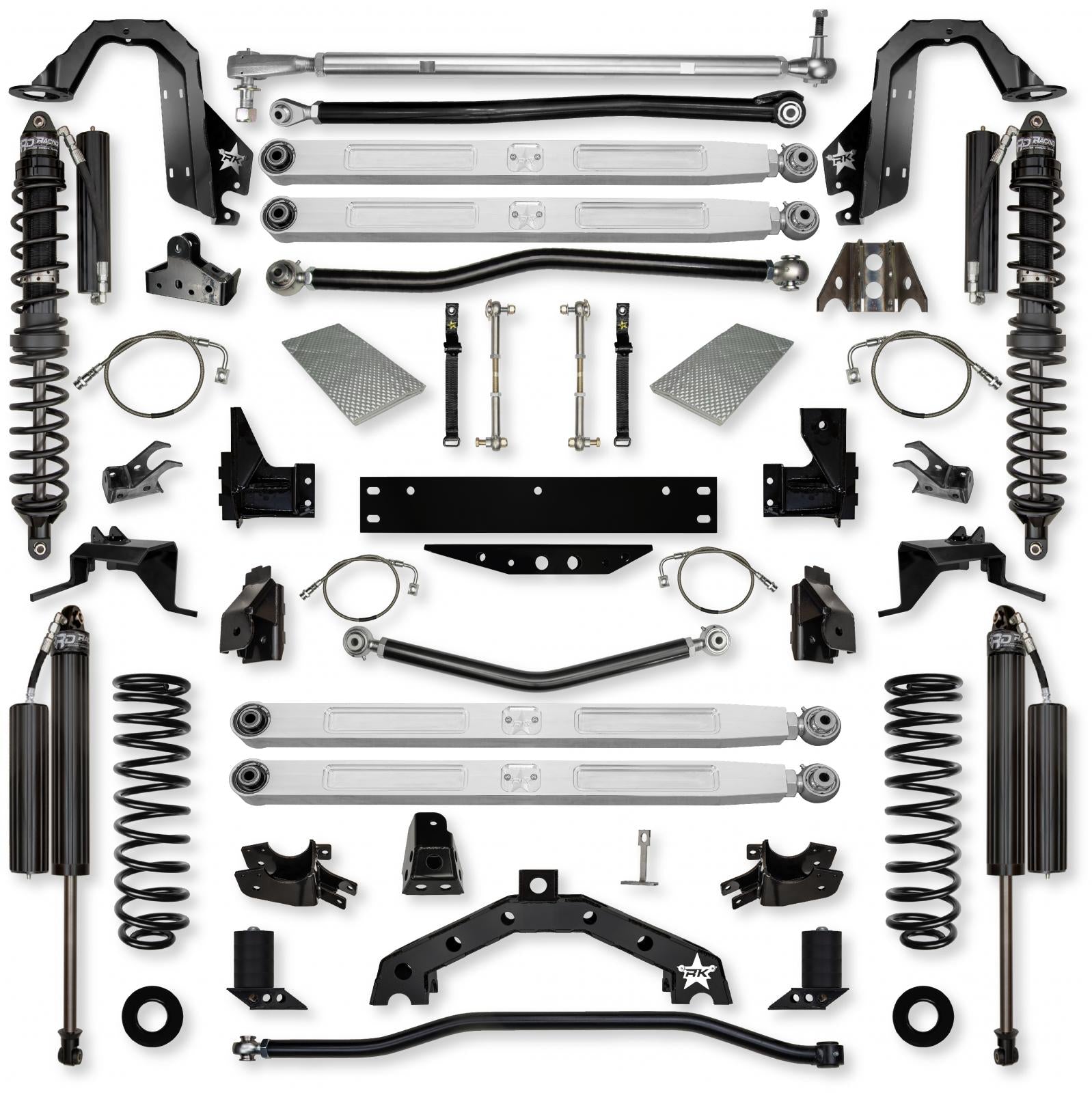

System Includes:

• (2) Front Frame Side Weld-on Long-arm Mount
• (2) Heat Shield Products Thermal Barrier
• (1) Top Mount pro-x Drag Link
• (1) 1/4 inch Thick Laser Cut Steel Cross Member
• (2) Front Billet 7075 Aluminum Adjustable Lower Control Arm
• (1) Front Axle Side Weld-on Control Arm Bracket
• (1) Front Adjustable Upper Control Arm
• (1) Front Adjustable Anti-wobble Track Bar
• (1) Front Sway Bar Disconnect Kit
• (4) Front/Rear Triple-rate Coil Spring
• (2) Rear Frame Side Weld-on Lower Control Arm Mount
• (2) Rear Billet 7075 Aluminum Adjustable Lower Control Arm
• (1) Rear Double Adjustable Upper Control Arm
• (1) Rear Adjustable Anti-wobble Track Bar
• (1) Rear Weld-on Dual Sport Track Bar Bracket
• (1) Rear Weld-on Axle Truss
• (2) Rear frame Side Weld-on Shock Mount
• (2) Rear Axle Side High Clearance Control Arm/Shock/Sway Bar Link Mount
• (2) Front/Rear Extended Brake line Kit
• (Depending on shock package chosen) Front Shock Mounts

Shock Information:

• All RRD Shocks and Coilovers are designed and built in-house
• Comp System Stage 1 (Coilover Front/Coil Spring Rear) 12 inch Travel Front RRD 2.625 RR Coilover Shocks Yielding 13.88 inch of Front Axle Travel 10.5 inch Travel Rear RRD 2.625 RR Shocks Yielding 12.1 inch of Rear Axle Travel
• Comp System Stage 2 (Coilover Front/Coil Spring Rear) W/Fast CD Adjustable Shocks 12 inch Travel Front RRD 2.625 FCD Coilover Shocks Yielding 13.88 inch of Front Axle Travel 10.5 inch Travel Rear RRD 2.625 FCD Shocks Yielding 12.1 inch of Rear Axle Travel

Wheel Fitment:

• We typically recommend 4.5 of backspacing on a wheel used with 33 & 35 tall tires We typically recommend 3.5 of backspacing on a wheel used with 37 tall tires

Tire Fitment:

• Full OEM Fenders 33 or 35 inch Tall Tires Flat Fenders 37 inch Tall Tires

General Notes:

• All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
• If building with a spare delete we recommend dropping 1 inch in coil lift height for the rear.
• If building an overland or heavily upfitted build in the back, we recommend upsizing 1 inch in coil lift height for the rear.
• We recommend a new front driveshaft if you plan to off-road routinely.
• (Adam's Driveshaft, Tom Woods, J.E. Reel) Requires removal of the OEM frame side front and rear lower control arm mounts.
• Requires removal of the OEM frame side front and rear upper control arm mounts.
• Requires welding of the front and rear frame side long-arm mounts.
• Requires removal of the OEM axle side front upper control arm mount.
• Minor exhaust rerouting required before the collector on the driver's side.
• This is recommended to be done prior to the suspension system being installed.
• Requires removal of the OEM rear axle side brackets.
• Requires welding of the provided rear axle side control arm/shock/sway bar link bracket, track bar bracket and rear axle truss.
• Requires removal of the OEM frame side rear shock mount.
• Requires welding of the provided frame side rear shock mount.
• Rear shocks will require a standard bushing and sleeve just like the rear lower shock bushing and sleeve.
• We have removed the weakness of the bar pin setup with the supplied rear upper shock mounts.
• Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up.
• Requires modifying the OEM front & rear shock mounts and welding of the raised upper shock mounts.
