2007-2018 Jeep Wrangler JK 4.5 inch Suspension Lift System 3 Dynatrac
Click to zoom in
  • Guaranteed Fitment

    Get the correct part

  • In-House Experts

    We know our products

  • Added Value

    We install what we sell!

  • Nationwide Delivery

    Fast shipping on instock items

2007-2018 Jeep Wrangler JK 4.5 inch Suspension Lift System 3 Dynatrac - Dynatrac - DT JK45-1X5310-L3

Dynatrac
FWLW_DT JK45-1X5310-L3
DTJK45-1X5310-L3
Lift Kits
$4,316.00

2007-2018 Jeep Wrangler JK 4.5 inch Suspension Lift System 3 Dynatrac - Dynatrac - DT JK45-1X5310-L3

Dynatracs 4.5 Jeep JK Suspension Lift Systems aim to strike a balance between wheel travel, articulation, ground clearance, and precise on and off-road handling. Take on desert whoops, obstacle-riddled trails, and drive home in comfort.

Dynatracs 4.5 Jeep JK Suspension Lift Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, Dynatrac-equipped JKs can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day.

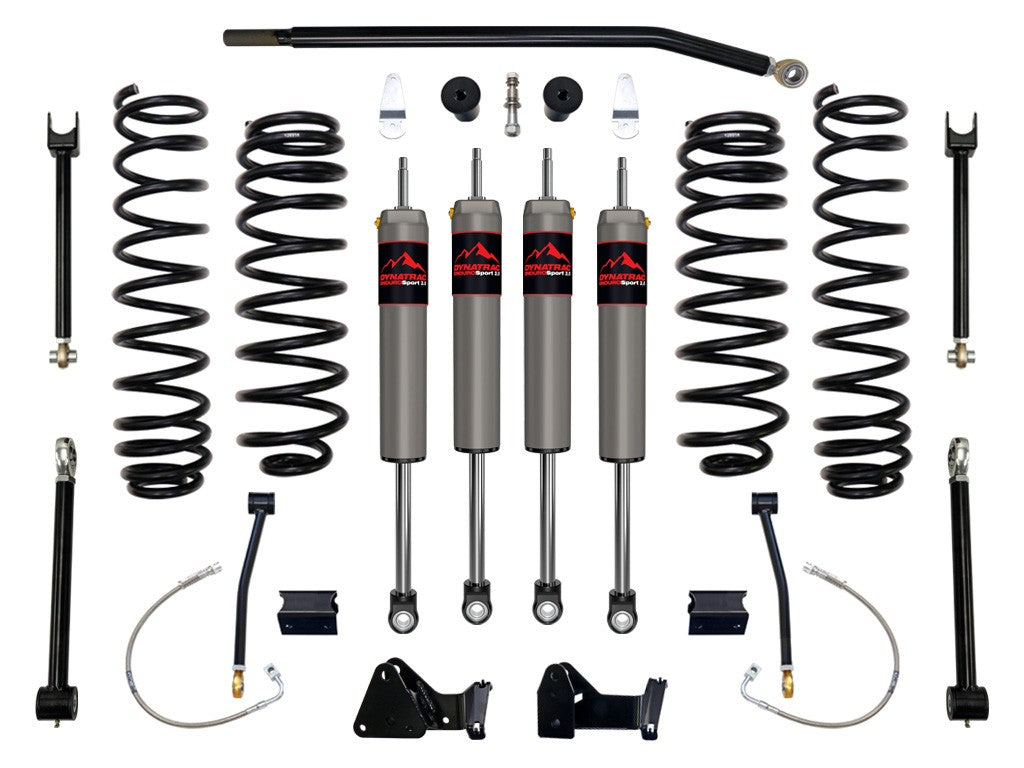

The Dynatrac Jeep JK 4.5 inch Suspension Lift System 3 includes dual-rate coil springs, track bar drop brackets, high-steering components, bumps top spacers, rear brake lines, rear sway bar links, adjustable front upper and rear lower links, and Dynatrac 2.5 EnduroSport shocks. Tested and tuned, the Dynatrac Jeep JK 4.5 inch Suspension Lift System 3 offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on-road feel for every day driving.

Installing this kit allows proper clearance for 35 inch tall tires with no modifications and 37 inch tires with aftermarket high clearance fenders.

Features and Benefits:

  • 100 percent returnable to stock
  • All links utilize dual-rate bushings or Ptfe-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
  • Dual-rate coil springs front and rear guaranteed never to sag
  • High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
  • Includes high-performance rebuildable and revalvable Dynatrac 2.5 EnduroSport shocks
  • Increased wheel travel and articulation over stock
  • No welding or cutting required
  • Stainless steel high-steer taper adapter eliminates drilling the factory knuckle

Details:

  • Bushings Included: Yes
  • Coil Spring End 1 Type: Closed
  • Coil Spring End 2 Type: Closed
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Grade Type: Performance
  • Maximum Lift Front: 4.5 Inch
  • Maximum Lift Rear: 4.5 Inch
  • Mounting Hardware Included: Yes
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Drive: 4WD
  • Lift Height: 4.5 Inch
  • Sold As: Each

Application Notes:

  • 2007-2018 Jeep Wrangler (Front and Rear) (Drive: 4WD / Qualifier: Also Requires Part Number DT922016, Use Up To 35 (in) x 12.50 (in) Tires, Up to 37x12.50 (in) Tire with Minor Fender Trimming, May Require Part Number DT922013, Raises Front 4.5 (in), Raises Rear 4.5 (in) / Note: Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle., Recommended Aftermarket Wheel Size: 17x8.5 with 4.5 Backspace / -6mm Offset)
OEM Wheels & Tires Fitment: Yes|Recommended Aftermarket Tires: 35 inch x 12.50 inch (Larger 37 inch tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)|Recommended Aftermarket Wheels: 17x8.5 inch w/ 4.5 Backspace / -6mm Offset|Tech Note: 2-door models sit slightly taller than 4-door models but remain level when installed.|Tech Note: Dynatracs advertised lift heights are based around a typical JEEP JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.|Tech Note: Front driveshaft can hit certain model skid plates at full droop and may require trimming of skid for full articulation.|Tech Note: May require rear alignment cam kit, Dynatrac part # DT922013.|Tech Note: Requuires aftermarket front drive shaft. Dynatrac part # DT922014 [12-18] or #DT922016 [07-11].35 inch x 12.50 inch (Larger 37 inch tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)


This Part Fits:

Year Make Model Submodel Notes
2007 Jeep Wrangler
2008 Jeep Wrangler
2009 Jeep Wrangler
2010 Jeep Wrangler
2011 Jeep Wrangler
2012 Jeep Wrangler
2013 Jeep Wrangler
2014 Jeep Wrangler
2015 Jeep Wrangler
2016 Jeep Wrangler
2017 Jeep Wrangler
2018 Jeep Wrangler
